About the aging test of electric bicycle batteries

For users of electric bicycles, the battery of e-bike is a very important part, which determines your riding mileage, power usage and more. Today we will give an introduction to the test of batteries.

The Advantages of Greenpedel Batteries

At present, the mainstream materials in the electric bicycle market are ternary lithium batteries, lithium manganate batteries and lithium iron phosphate batteries. Greenpedel mainly uses ternary lithium battery as the main battery.

Ternary lithium battery refers to a lithium battery whose positive electrode material uses nickel cobalt lithium manganese oxide ternary positive electrode material. Compared with lithium cobalt oxide battery, ternary material as positive electrode has high safety and good cycle performance, and with the improvement of formula, the battery voltage of the 18650 cell has reached 3.7V, which also exceeds the lithium cobalt oxide battery in capacity.

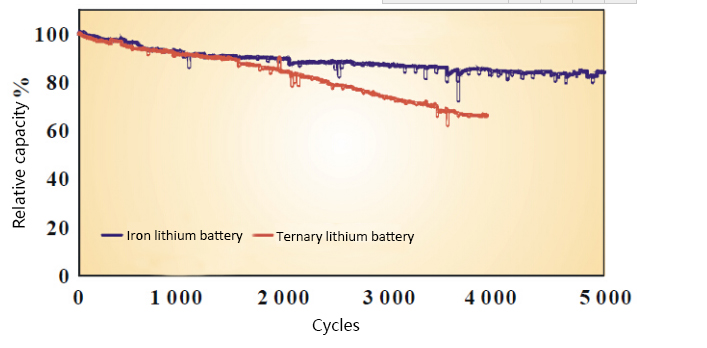

As shown, using the same battery structure, ternary and lithium iron phosphate materials were used to make batteries, and the discharge, charge and cycle tests were carried out. The ternary lithium battery has advantages in charge rate, discharge rate and discharge performance at different temperatures.

Ternary lithium battery VS Iron lithium battery

Taking into account the influence of batteries on electric bikes, our company is also constantly improving the materials of the batteries. At present, the ternary lithium battery is the best we think and can give you more suitable for the e-bike market.

The battery aging test is also necessary. Such test can ensure that the finished products you receive are guaranteed in quality. Therefore, Greenpedel will conduct strict aging test before the battery leaves the factory. Next, we will give you a detailed introduction about Greenpedel's discharge current and capacity test.

Battery Aging Test Report

It is very important to be able to effectively test lithium-ion batteries before leaving the factory. In this article, we will list the testing process of Greenpedel batteries in detail.

1. Composition of Lithium Batteries

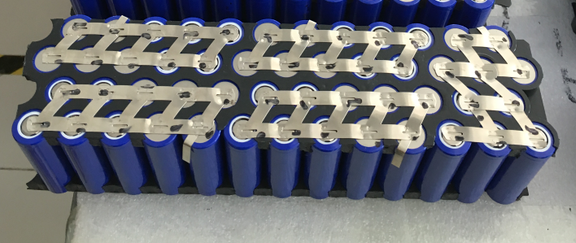

As we all know, the battery of an electric bicycle is composed of cells one by one.

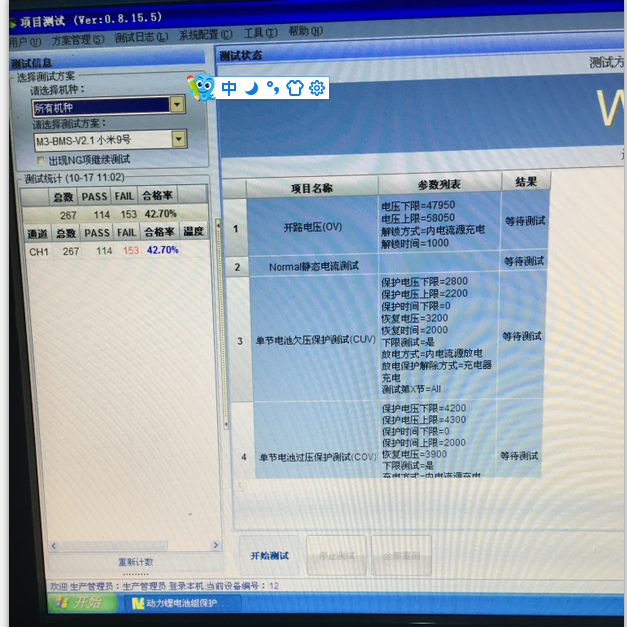

2. Incoming inspection of cells and protection boards

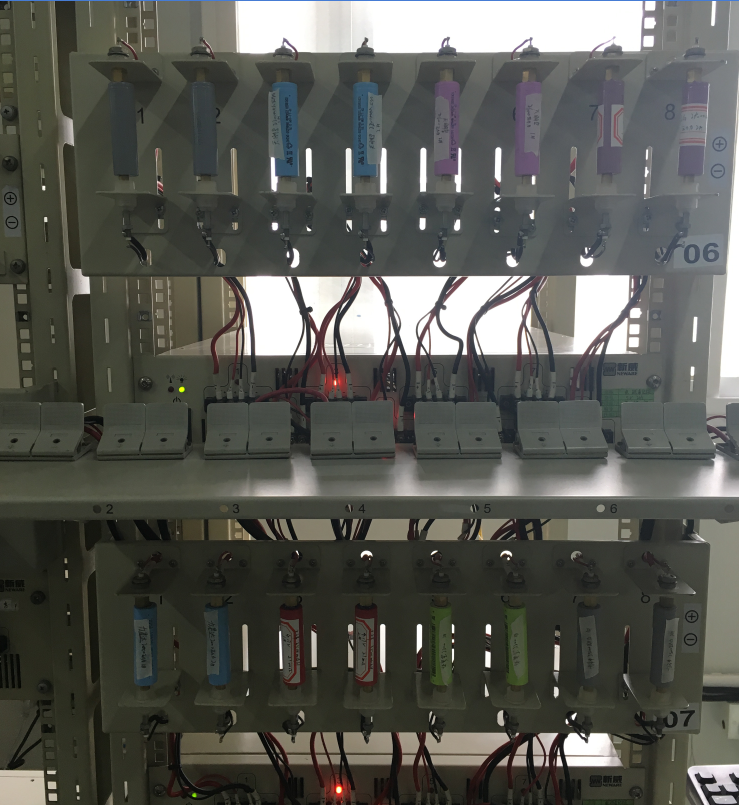

After purchasing cells in batches, and before screening the cells, it is necessary to conduct random inspections on each batch of cells, and test the cycle life and discharge rate of the cells according to the specifications of the cells. Different cell specifications have different discharge currents and requirements for testing.

3.Screening of cells

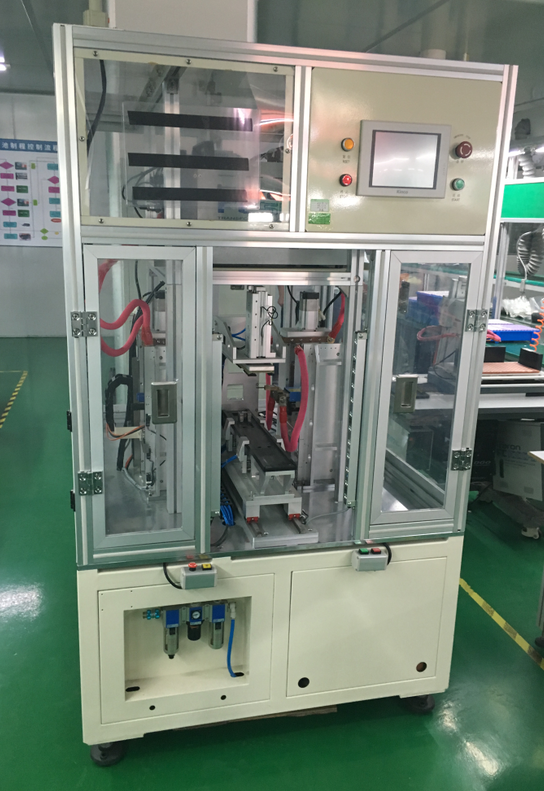

Through the cell screening equipment, the cells are screened out according to the range requirements of internal resistance and voltage, and the ones with relatively high consistency are grouped together and classified into good categories, also called capacity division.

4. Make battery pack

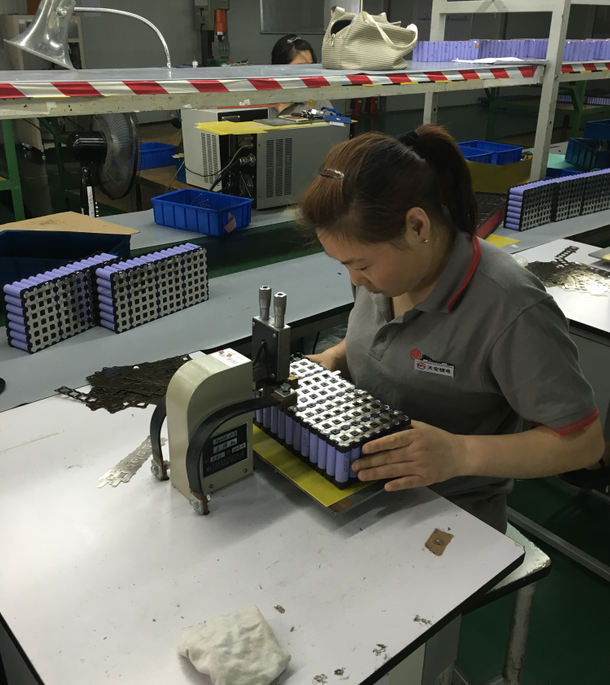

Use a spot welder to fix the cell, and fix both sides.

5. Battery pack inspection

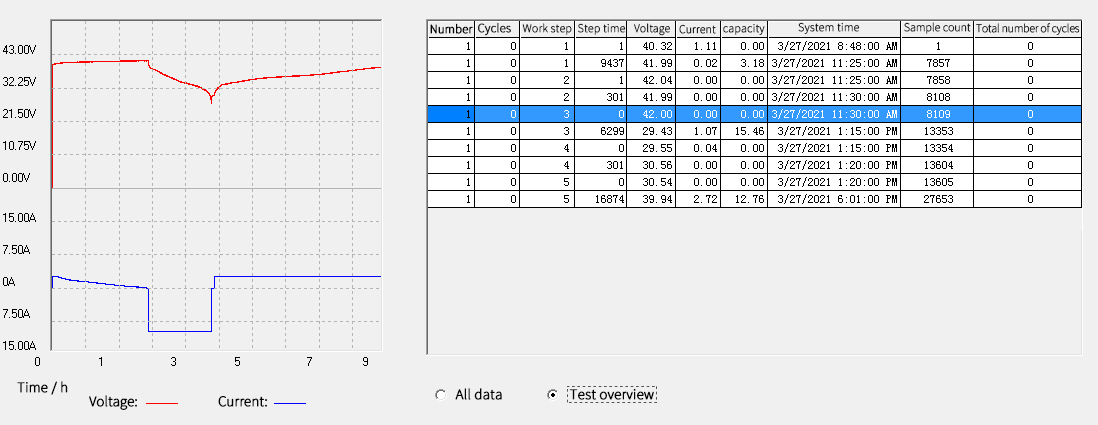

After the battery pack is made, it is necessary to charge and discharge the battery pack to check whether the voltage and current of the battery are within the specified range, as shown in the figure.

6. Finished battery aging test

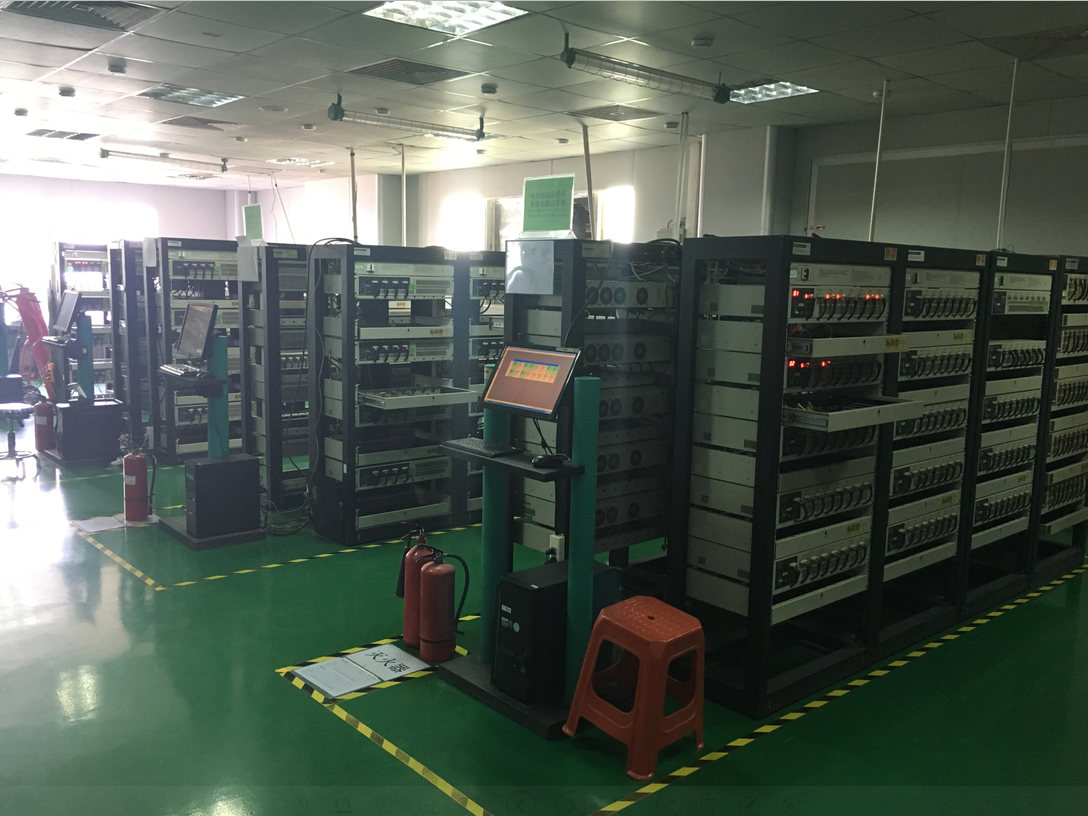

After one charge and discharge, the battery is put into the special equipment again, and the charge and discharge are carried out several times for monitoring.

The above is a set of tests for Greenpedel batteries before leaving the factory. It can be seen that our company's control of batteries has to be screened and tested again and again. Only after passing the test can we conclude that it is qualified and then sell it.

After sales of Greenpedel batteries

How to maintain the battery?

It is best to partially discharge the lithium battery, rather than fully discharge, and try to avoid frequent full discharge. It is best to unplug it immediately after charging.

The ternary lithium battery is over-discharged and the voltage is too low, which will also damage the cell. Maintenance every three months is recommended. If possible, try to charge the battery to 40% and place it in a cool place. This allows the battery's own protection circuit to operate over a long shelf life. If the battery is fully charged and exposed to high temperature, it will cause great damage to the battery.

How to store batteries?

Short-term storage: Store the battery in a dry, non-corrosive gas, temperature and humidity between -20°C ~ 35°C, 65±20%, higher or lower temperature and humidity will cause the metal parts of the battery to rust.

Long-term storage: Since long-term storage will accelerate battery self-discharge and active material passivation, the temperature and humidity range from 10°C to 30°C, 65±20% is more appropriate, and the battery needs to be charged and discharged every three months.

The after sales of Greenpedel

Two-year battery warranty. The warranty period is 24+3 months from the date of shipment, of which 3 months are the product turnover period.

Note: When the battery capacity is less than 70% within 12 months after leaving the factory, replace the battery with a new one. When the battery capacity is less than 60% within 13-24 months after leaving the factory, replace the backup battery. When the battery capacity is less than 55% within 25-27 months after leaving the factory, replace the maintenance battery.

If you have any questions, you can leave a message to tell us, we will answer for you as soon as possible!
