500W-750W High Torque Hub Motor Electric Bike Drive System

Share to:
Greenpedel high torque 500W-750W wheel drive system, geared brushless motor, speed can reach 38km/h. imitation torque controller with multiple functions and protection features, sine wave and square wave for can choose your favorite display, whole system is waterproof, powerful enough for city travel.
  • GPM58K
  • Green pedel
  • 48V 500W-750W
  • 48V 11AH
  • 48V 22A
  • LCD




Noise is less than 55db, which is lower than most electric bike kit on the market. Travel quietly and live happily


As the geared hub motor, the motor power can reach 750w, with high torque can satisfy your pursuit of speed


It takes only 5 minutes to convert your bike into an electric bike by this electric bike conversion kit


Comply with most national road standards, with low prices, giving you the highest cost performance


Related Accessories


G104 motor


DP-6C battery


22A controller

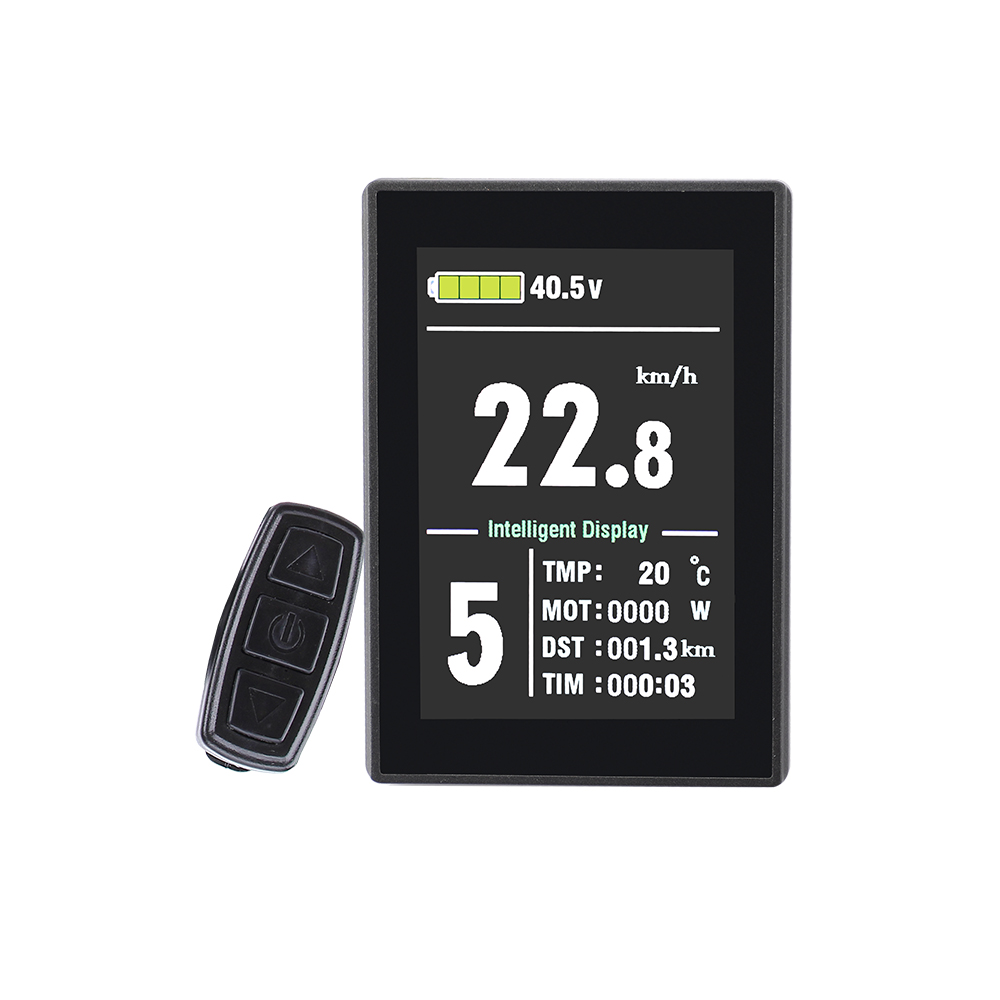

LCD8S display


130X throttle


115PDD ebrake






Voltage    48V Top speed    38KM/H

Power    500W-750W Range    50KM-70KM

Controller    KT 48V 22A sinewave Battery    48V 11AH (read more)

Display    LCD8S (read more) Total weight    8KG

Setup information

Wheel size    16"-28"(700C) Motor dimension    GP-M58(read more)

Rim    Aluminium double wall rim 1.75-2.125 Brake fitting    Disc brake/V brake

Eyelet    36H Spoke    12g/13g

Power coating    Silver/Black Matching models    MTB/City bike

The 500W-750W High Torque Hub Motor Electric Bike Drive System is the most powerful geared hub motor kit, This kit includes 48V 500W Geared Hub Motor, a lithium battery, electronic controller, throttle, display, ebrake Lever, PAS. It can meet all the requirements of transforming ordinary bicycles into electric bicycles. At the same time, you can also choose an extra controller box to place your controller more aesthetically, and choose front and rear lights to meet your night travel needs. View more 500w electric bike conversion kit.

With regard to the 48v 500w motor, you can freely choose front wheel, rear wheel or rear cassette wheel. Of course, you can also ask us for flywheel. This motor is suitable for 8-10 flywheels. In terms of rim size, we can choose from 16 inches to 29 inches, which can be adapted to both large and small models.

In terms of controller, we can customize many functions, such as lamp function, horn function, reverse function and so on, and at the same time, we can choose whether the whole system is waterproof or not. In addition, we can replace all other accessories.

In terms of battery, you can choose whether you need down tube battery or rear rack battery. We have dozens of different battery cases to meet various needs. We have Chinese cells, LG cells, Panasonic cells and Samsung cells to choose from, and there is a very large capacity range to choose from.

We have several to dozens of different schemes to choose from for other ebike parts. We have dozens of different LED display, LCD display andcolorful display, large screens or small screens is both okay. We have different ebrake and brake sensor, the latter is mainly to avoid replacing theoriginal brake handle of bicycle. We have a large number of thumb throttle and twist throttle with different functions, some of which can even replace display. We also have PAS with different number of magnetic points to choose from,  prefer the way of stepping on the power? Then choose ahigh-quality PAS to assist you.

If you have a shop or even a factory that needs to purchase electric bicycle conversion kits,we have many preferential activities for batch purchase. No matter whether you are 100 sets, 1000 sets or even 10,000 sets, we can always meet your needs.
