48V 1000W Bafang BBSHD Mid Drive Motor System

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
1.If your brake lever is Hydraulic Brake .We can upgrade the ebrake to brake sensor. 2.We supply 42T 44T 46T chainwheel. 3.About the battery connector.We supply 3 versions.Bullet.PP30.XT60. 4.We supply the label sticker of 36V 250W. 5.We supply 68mm/73mm/100mm/120mm bottom branket. 6.This kit is not for Carbon fiber bicycle.
  • Bafang BBSHD

  • Green pedel

  • 48V

  • 1000W

  • mid drive motor

  • LCD

Availability:

.



未标题-1



9







Specification




Rated voltage    48V

Net weight    5.6KG



Max no-load speed    160RPM

Max torque    120N.M



Rated power    1000W

Working temperature    -20℃-45℃



Max loading speed    1140RPM

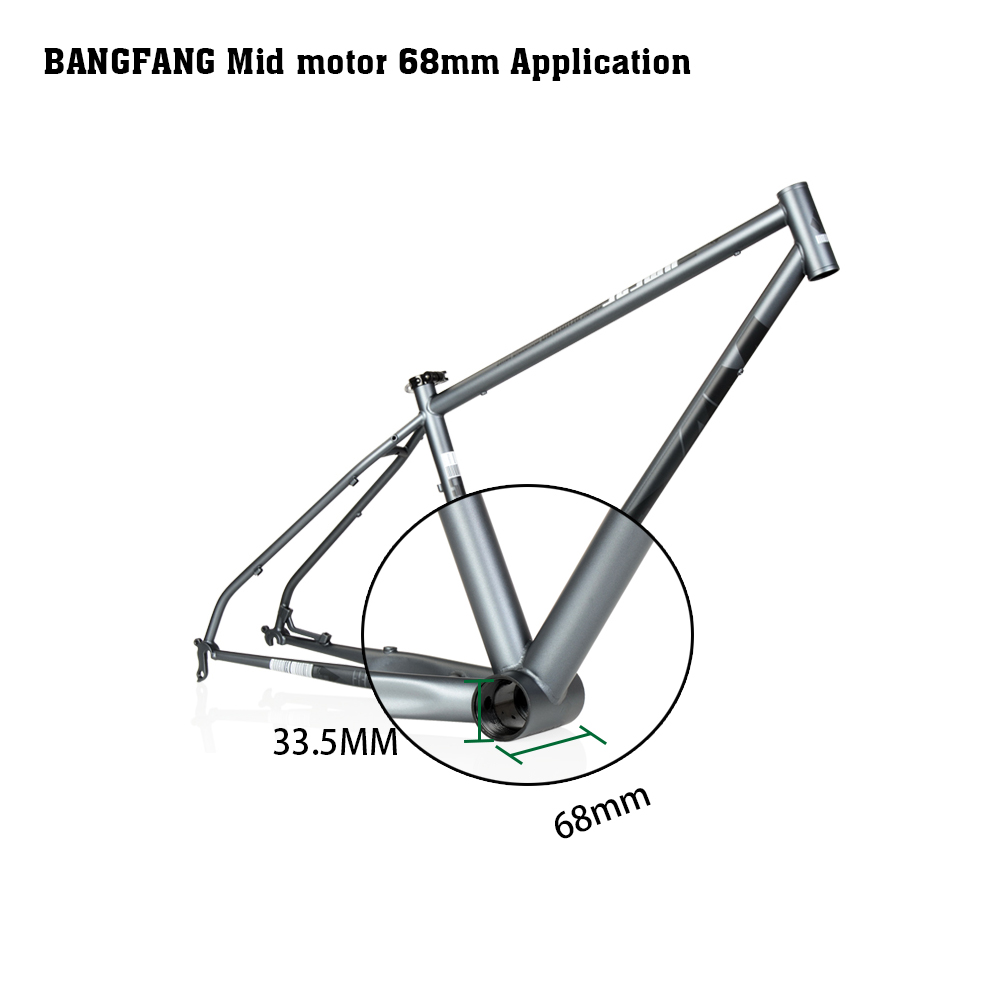

Axle size    68/73/90/100/120mm



Efficiency    ≥80%

Crank teeth    42T 44T 46T






The mid drive motor refers to the motor that the driving motor of the electric assisted bicycle is installed in the middle position of the vehicle body, that is, the pedal position. The motor is connected with the vehicle body and connected with the rear wheel through a chain to transmit power. At the same time, pedals are installed on both sides of the motor. Under the condition that the motor has no power supply, the rider can ride the bicycle manually through the pedals.
