36V 250W TSDZ-2 Mid Drive Motor Kit

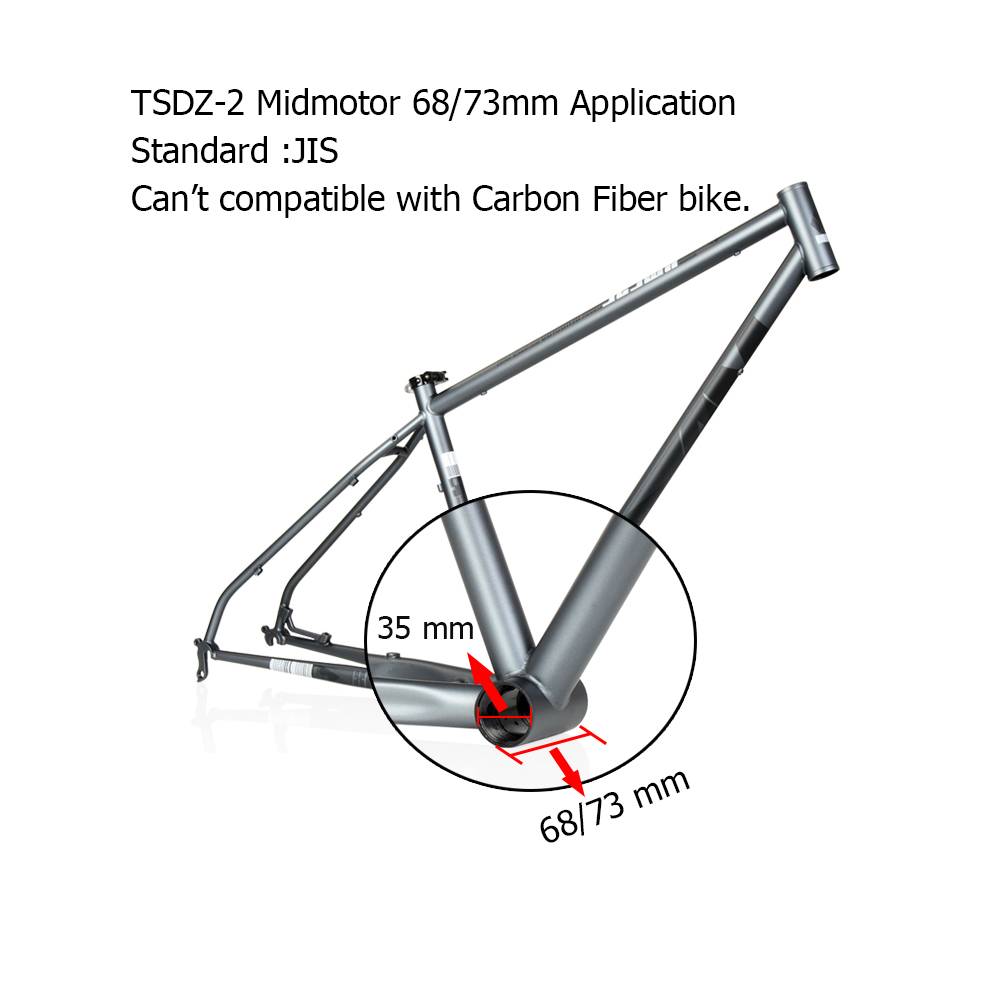

The Mid Drive Kits are designed to fit bikes with a 68mm (2.68 in.) or 73mm (2.87 in.) wide bottom bracket shell and 35mm inside diameter. This encompasses the vast majority of bikes excluding some newer high end bikes with an Integrated Bottom Bracket, and Fat tire Bikes with a 100mm wide bottom bracket shell.

Model:
TSDZ-2
Brand:
Green pedel
Voltage:
36V
Power:
250W
Type:
mid drive motor
Display:
LCD

Availability:


Inquire

Specification

	Rated voltage 36V	Gross weight 5.25KG
	Power assist ratio 36%-300%	Max torque 80N.M
	Rated power 250W	Working temperature -20℃-45℃
	Intergrated controller 36V 15A	Axle size 68mm
	Efficiency ≥80%	Crank teeth 42T

The mid drive motor refers to the motor that the driving motor of the electric assisted bicycle is installed in the middle position of the vehicle body, that is, the pedal position. The motor is connected with the vehicle body and connected with the rear wheel through a chain to transmit power. At the same time, pedals are installed on both sides of the motor. Under the condition that the motor has no power supply, the rider can ride the bicycle manually through the pedals.
