KT-LCD8 E-Bike Display

Views: 225     Author: Site Editor     Publish Time: 2021-08-27      Origin: Site


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

LCD8 is selling well in the kt displays because of its color screen.It can only be compatible with KT controller because they have the same communication protocol.




Type:KT-LCD8H Display




Handlebar size for holding:Φ22.2-Φ24.2mm

Display Cable Length: SM connector ,about 180cm/ WP connector ,about 15cm

USB normal connector :With USB function.5pin SM connector. Wire length:About 1850mm.connected with controller directly.

USB waterproof connector :With USB function.5pin Waterproof connenctor.Wire length:about 150mm with connector .Cannot connected with controller directly.Depend on a 1in4 bus cable

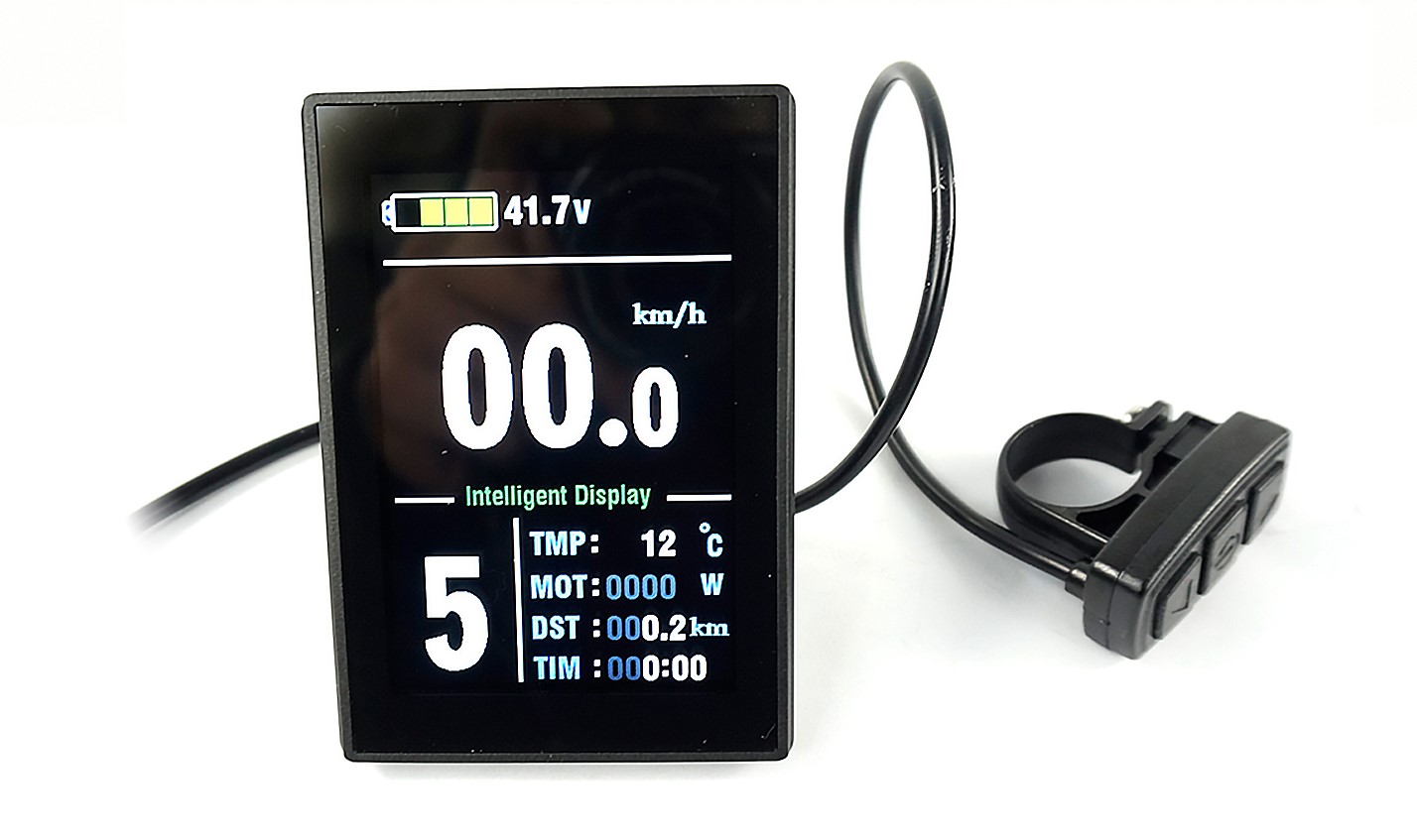

If you prefer a vertical screen, there is also an LCD8S meter that can satisfy you

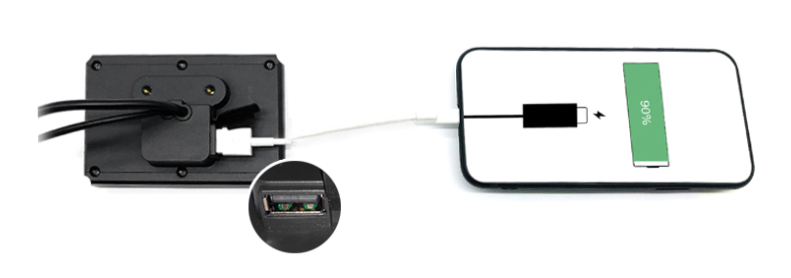

It has a usd interface and can be charged by usb

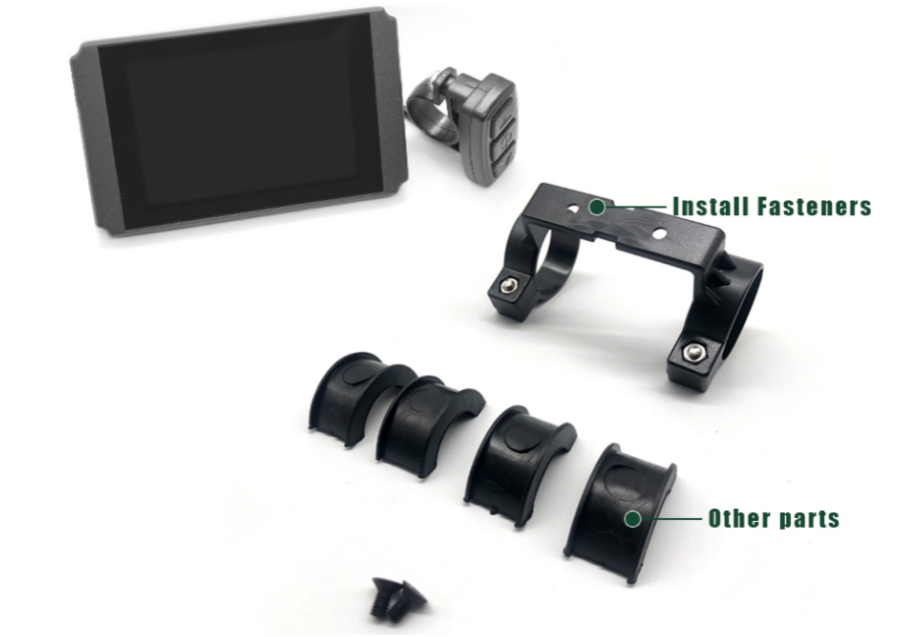

In order to match different handles, LCD8 is also equipped with different accessories to adapt to handles of different thicknesses

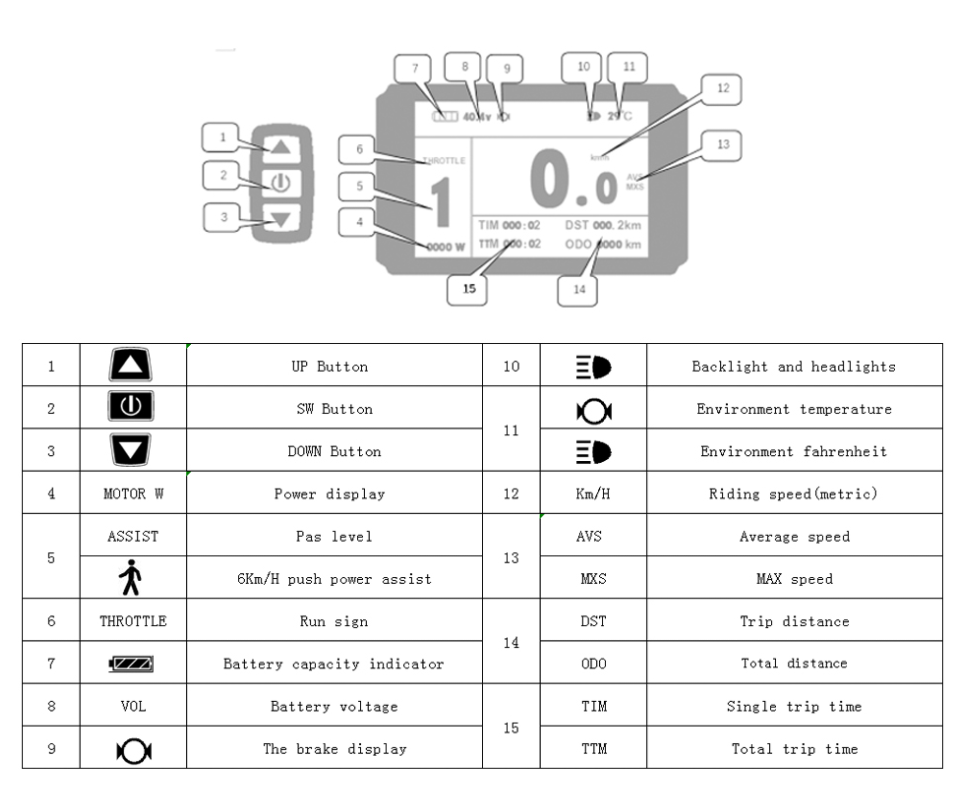

In addition to the color screen, it has a variety of functions


1.Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cyclingparameters;
2.Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3.Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;
4.Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;
5.Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;
6.Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
7.Cadence function:In the assistance mode, the display will show the pedal/'s Revolutions Per Minute (RPM);
8.Cruise and constant speed:With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
9.Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;
10.Password setting:With three-bit of power-on password setting;
11.Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;
12.Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;
13.Split structure designHost part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;
14.voltageSupply voltage of 24V, 36V, 48V can be automatically identified and compatible;
