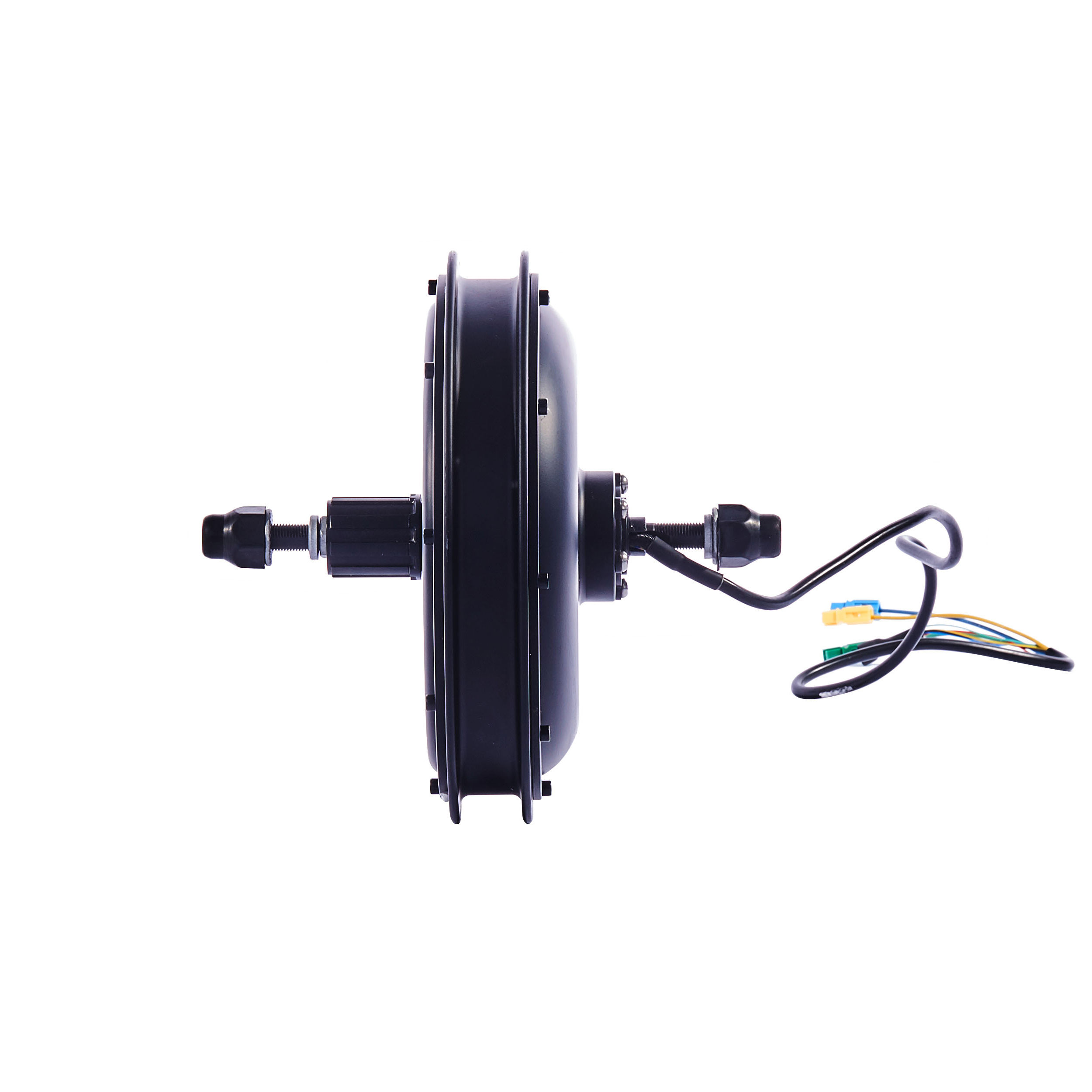

Greenpedel D30 48V 1000W High Power Electric Bike Motor

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Greenpedel BLDC 1000W hub motor for electric bike,maxed speed can reach to 42KM/H with max torque more than 50N.M.silent and powerful .people can use it for offroad , or limited the power and speed to 250W/25KM/H and use it for road legal.
  • GP-D30

  • Green pedel

  • 48V

  • 1000W

  • BLDC hub motor

Availability:

.



未标题-1



9







Specification



Rated voltage    48V

Net weight    6KG



Max no-load speed    425RPM

Noise    <60db



Rated power    1000W

Working temperature    -20℃-45℃



Max loading speed    375RPM

Cable location    shaft center right



Efficiency    ≥78%

Quantity of the magnets    46



Waterproof grade    IP54

Anti-corrosion grade    96



Fitting wheel size    16"-28"(700C)

Brake type    V brake/disc brake



Fork size    135mm fro rear wheel

Spoke holes    12G/13G






Our hub motors are all brushless motors, which can be divided into two categories: gear motors and DC motors.

Gear motors are small size, light weight, large torque, small running current, power-saving, low motor noise, but the power is low and slow. Therefore, gear motors are generally used for 250w-750w motors.

While DC motors have large torque, fast speed and large power, because there is no gear system, and less motor damage is caused. But the size is large, heavy and consumes power, so we usually use DC motor for 750w-3000w motor.
