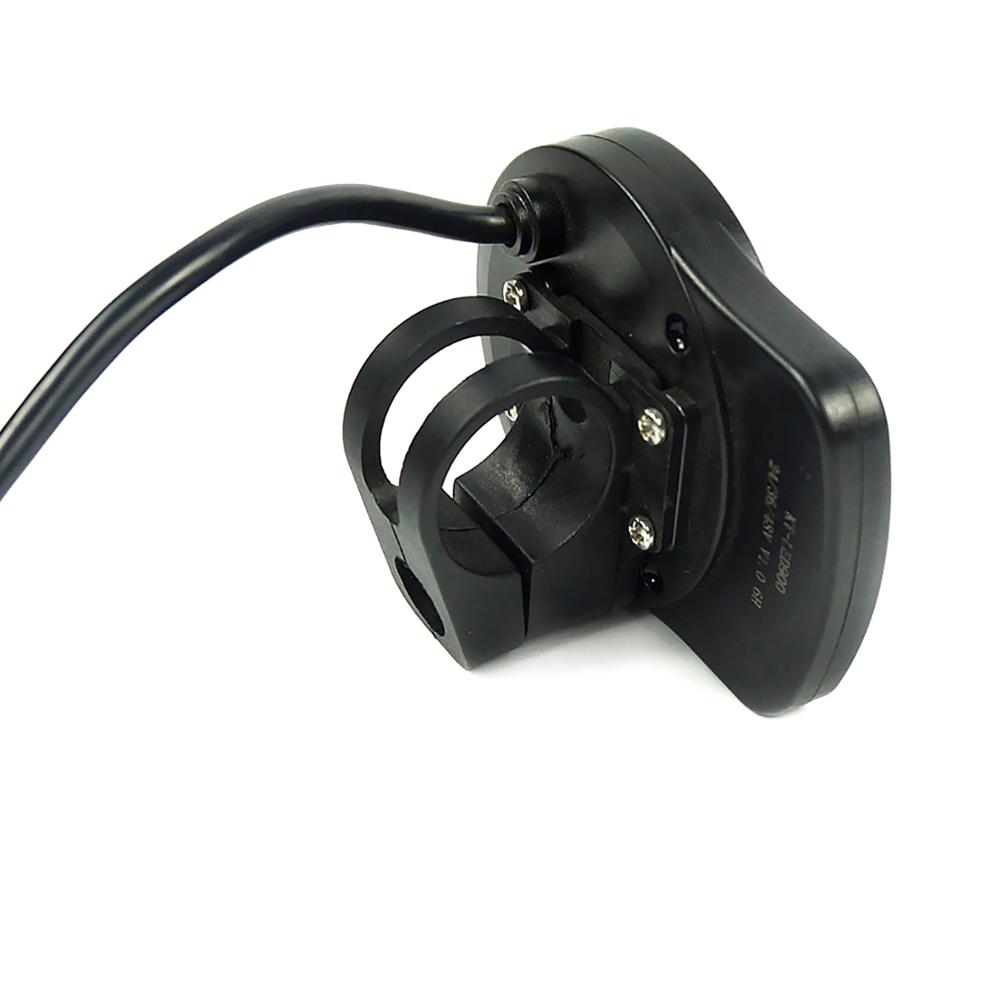

Greenpedel 24v 36v 48v KT 900S Electric Bike LED Panel

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display 2. Single Max speed(MXS)+single Average Speed(AVS) 3. Single trip distance(DST)+Total Trip distance(ODO) 4 .6km/h push funtion,Cruise function.head light,back lights, switching opitonal,brake status showing 5. torque sensor imulation speed sensor 0-5 level+ battery capacity showing 6. Controller can be reprogrammed by Parameter setting. 7. Data clear+parameter copy+Fault code Display. 8.Motor working power(W) showing. And motor working Temperature showing. 9.LCD Alarm for motor over heat. (USB function optional)
  • LED900S

  • Green pedel

  • 24V 36V 48V

  • 100g

Availability:

.



未标题-1



6







Specification



Voltage    24V/36V/48V

Handlebar size for holding    22.2mm



Display type    LED

Cable length    About 180cm(SM), About 23cm(WP) including the connector



Communication    UART

USB function    NO



Support modes    0-5

Plug    5 pin connector



Color    Black

IP-Code    IP65



Weight    100g

Certification    CE/EN15194






1. Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;


2. Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;


3. Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;


4. Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;


5. Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;


6. Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;


7. Cruise and constant speed:With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;


8. Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;


9. Password setting:With three-bit of power-on password setting;


10. Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;


11. Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;


12. Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;


13. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible
