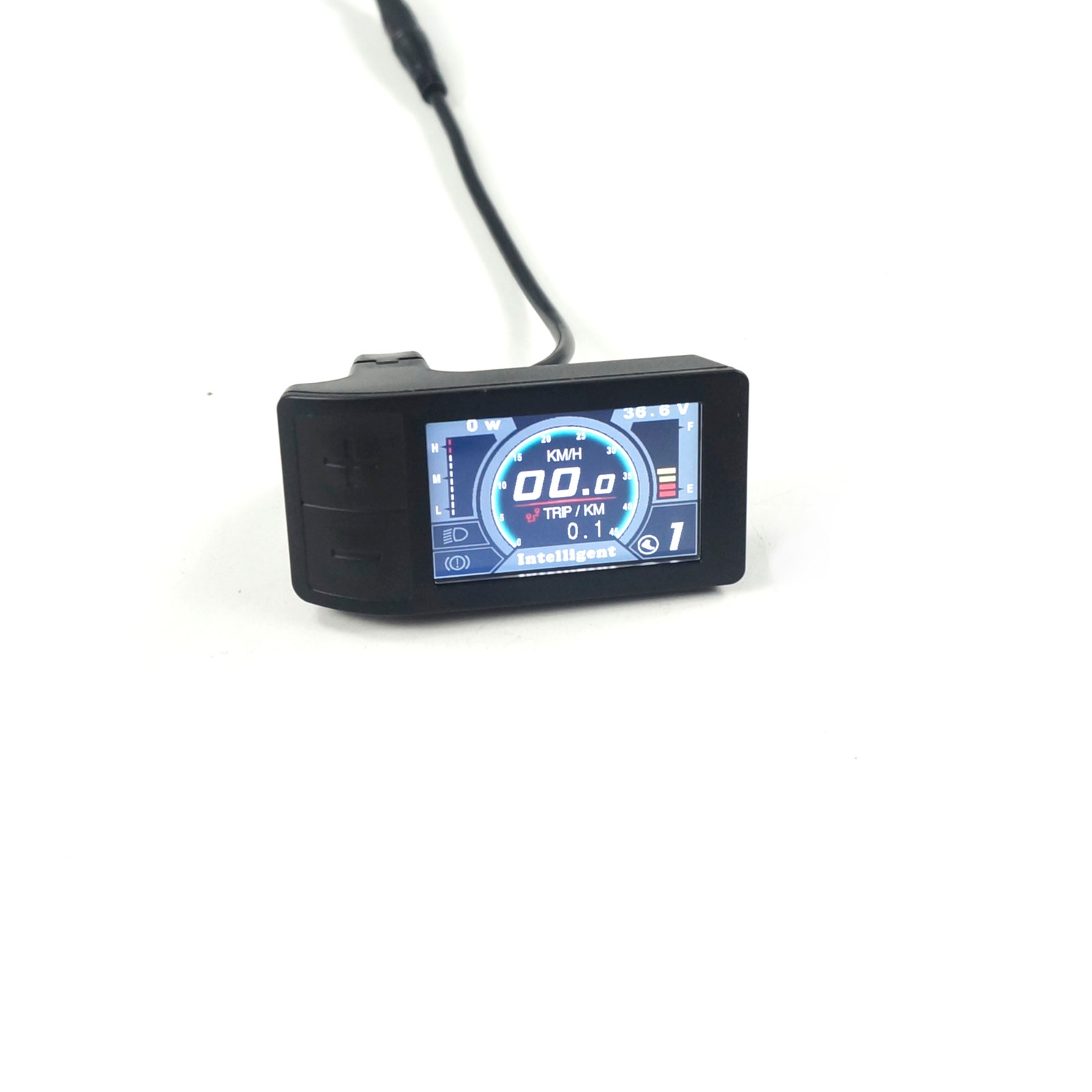

Greenpedel 500C TFT Electric Bike Colorful LCD Display

Voltage    24V/36V/48V

Handlebar size for holding    22.2mm/31.8mm

Display type    Dot matrix LCD

Cable length    50cm including the connector

Communication    UART/CAN BUS

USB function    No

Support modes    0-3/0-5/0-6/0-9

Plug    5 pin connector

Color    Black

IP-Code    IP65

Weight    300g

Certification    CE/EN15194/ROHS

1. Suitable for low temperature，Max -20℃.

2. High-contrast 2.2inch IPS colorful matrix screen.

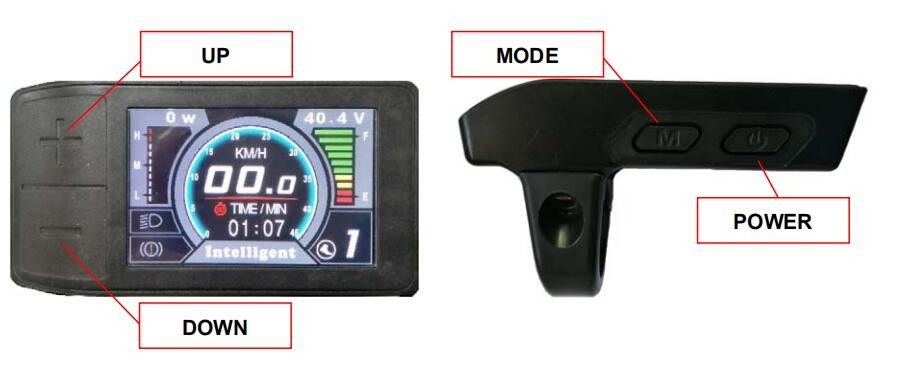

3. Ergonomic external button design, easy to operate.

4. Speed display : AVG SPEED, MAX SPEED, SPEED(Real-time).

5. Kilometer / Mile : Can be set according to customers’ habits.

6. Smart battery indicator : Provide a reliable battery indicator.

7. 9-level Assist : 3-level/5-level/9-level optional.

8. Mileage indicator : Odometer/Trip distance/ Clock/ Riding time.

9. Power indicator : real time power indicator, digital or analog.

10. Speed limit value indicator

11. Error code indicator.

12. Software upgraded : Software can be upgraded through UART.
