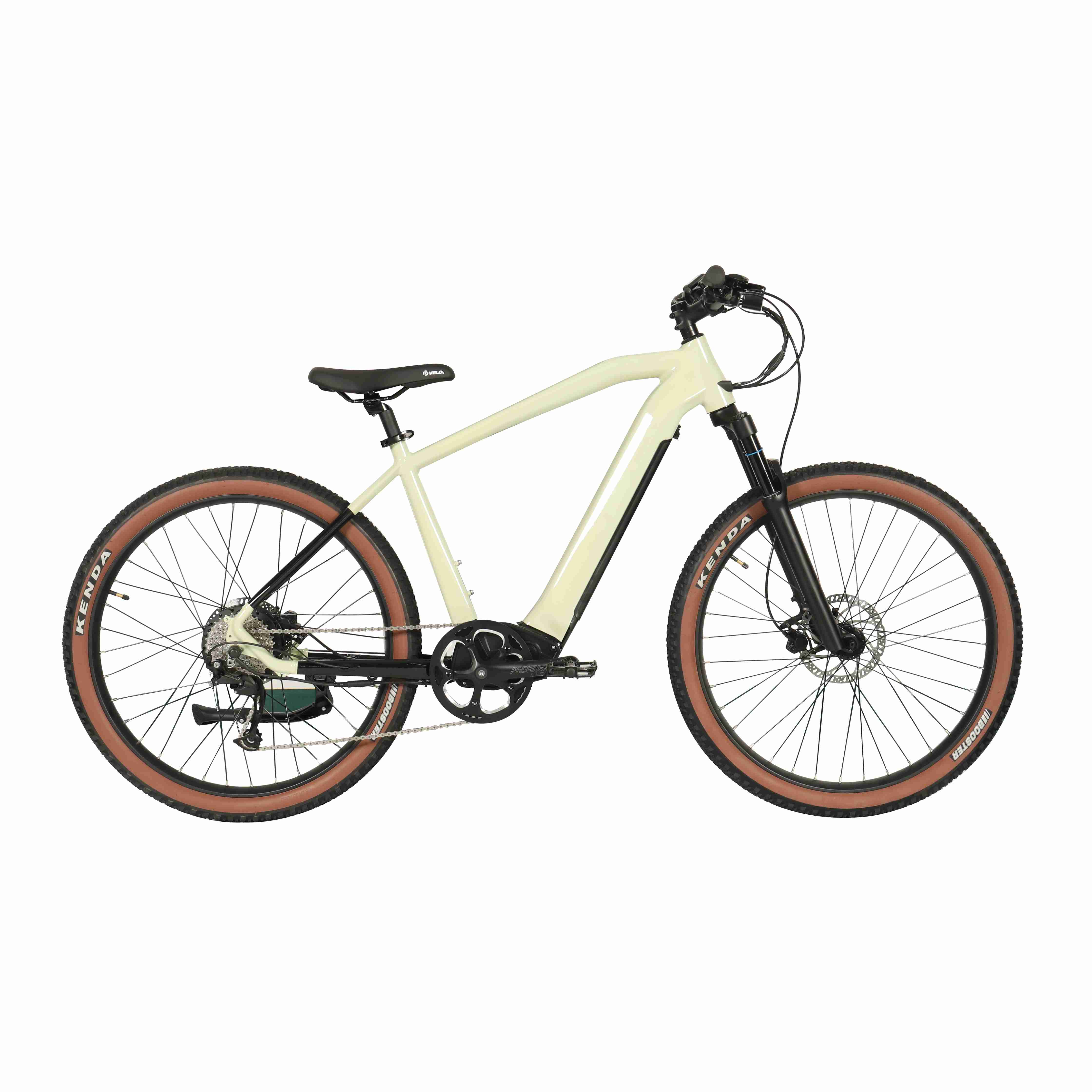

Explore the Outdoors with the M5 Mountain eBike

Conquer Any Trail with our Powerful M5 Mountain E-bike

GP-M5

Experience the thrill of off-road adventures like never before with our M5 mountain e-bike. With powerful performance and advanced features, conquer any trail with ease.

Inquire

Greenpedel Electric Bike Customized Service

Battery capacity can be customized with different cells

Display can be customized with LED, LCD, colorful modes

Brake lever, throttle, PAS can be customized

Tires can be customized with different brands

Saddle, pedal, grip can be customized with different types and brands

Anything you want to customized please be free to contact us

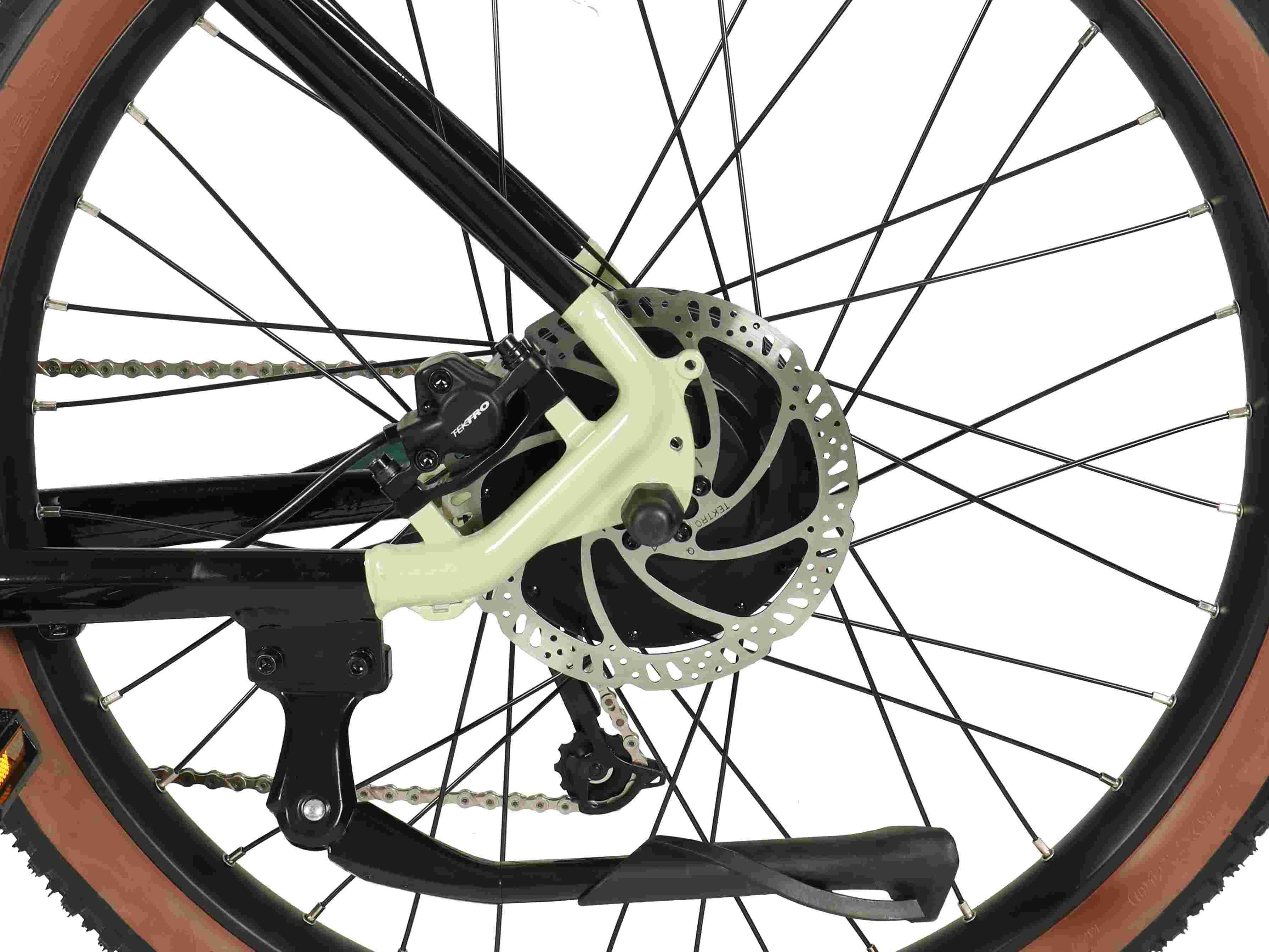

Motor

The motor is a G110R 48V 500W rear hub motor produced by Green Pedel. It provides a maximum torque of 55N.m and is capable of reaching a maximum speed of 25km/h (adjustable for different countries). As a rear hub motor, it is designed to provide pedal assist power for the rear wheel, making it suitable for e-bikes and electric mountain bikes. The motor is known for its efficiency and durability, and it is a popular choice among e-bike enthusiasts.

Powerful Battery

The battery in this electric bike kit is a 48V 11.6Ah lithium-ion battery, consisting of either 52 18650 cells or 40 21700 cells, depending on the manufacturer's chosen design. The cells have a capacity of 2900mAh, and the battery is housed in a box for protection and easy installation on the bike frame. The battery is rechargeable using the provided 54.6V 2A charger and has a charging time of 6-6.5 hours from 0% to 100% capacity. The estimated range of the bike varies depending on the riding conditions, but it can provide approximately 45-50km with throttle-only mode and around 70-75km with pedal-assist mode.

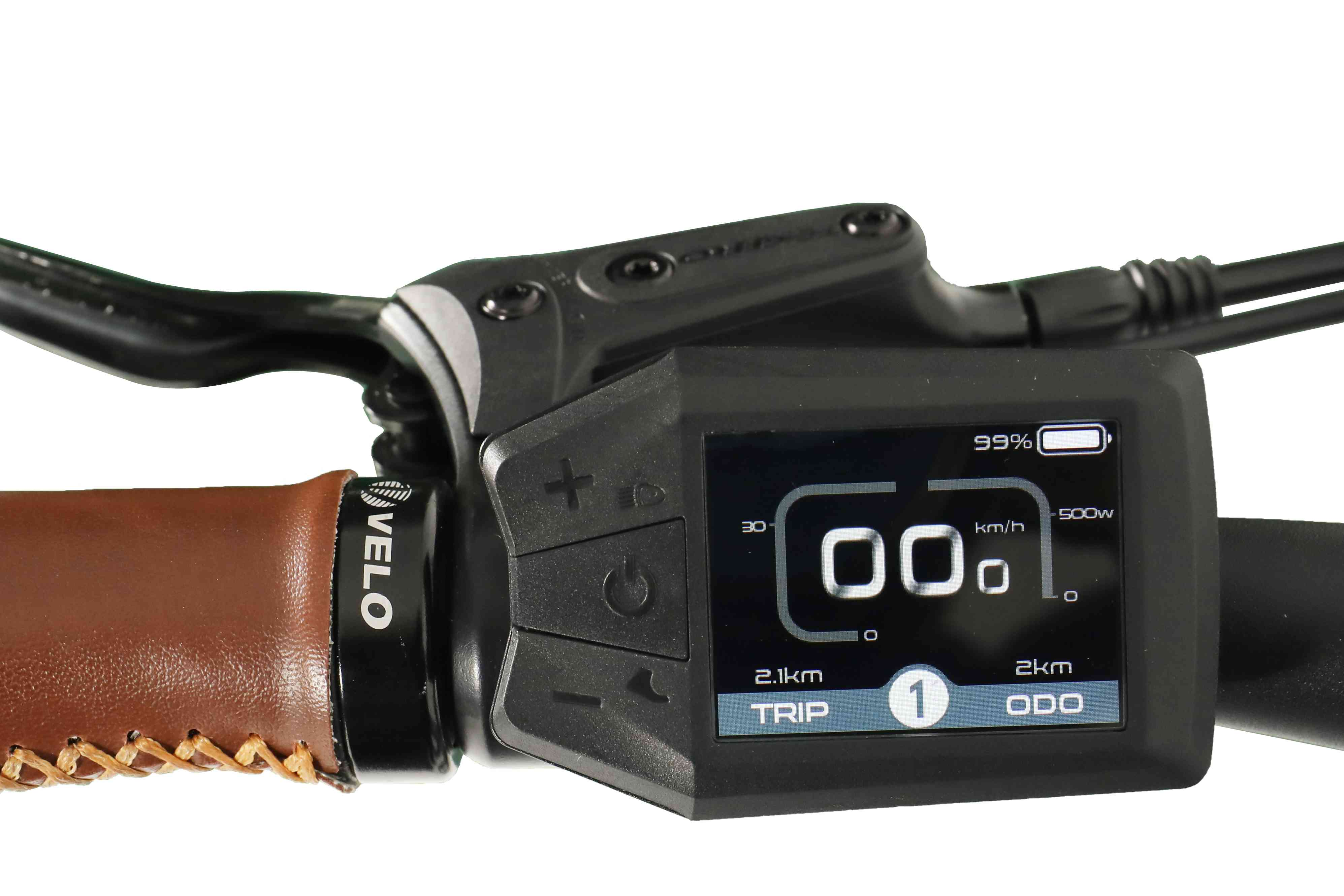

LCD Display

The M5 electric bike typically features an LCD display located on the handlebars that provides riders with essential information about their ride. The display is easy to read and features bright, backlit text for optimal visibility, even in low light conditions.

The M5 e-bike display typically shows information such as the current speed, battery level, distance traveled, and the assist level. The assist level refers to the level of electric assist provided by the motor, which can be adjusted to suit the rider's preference or the terrain.

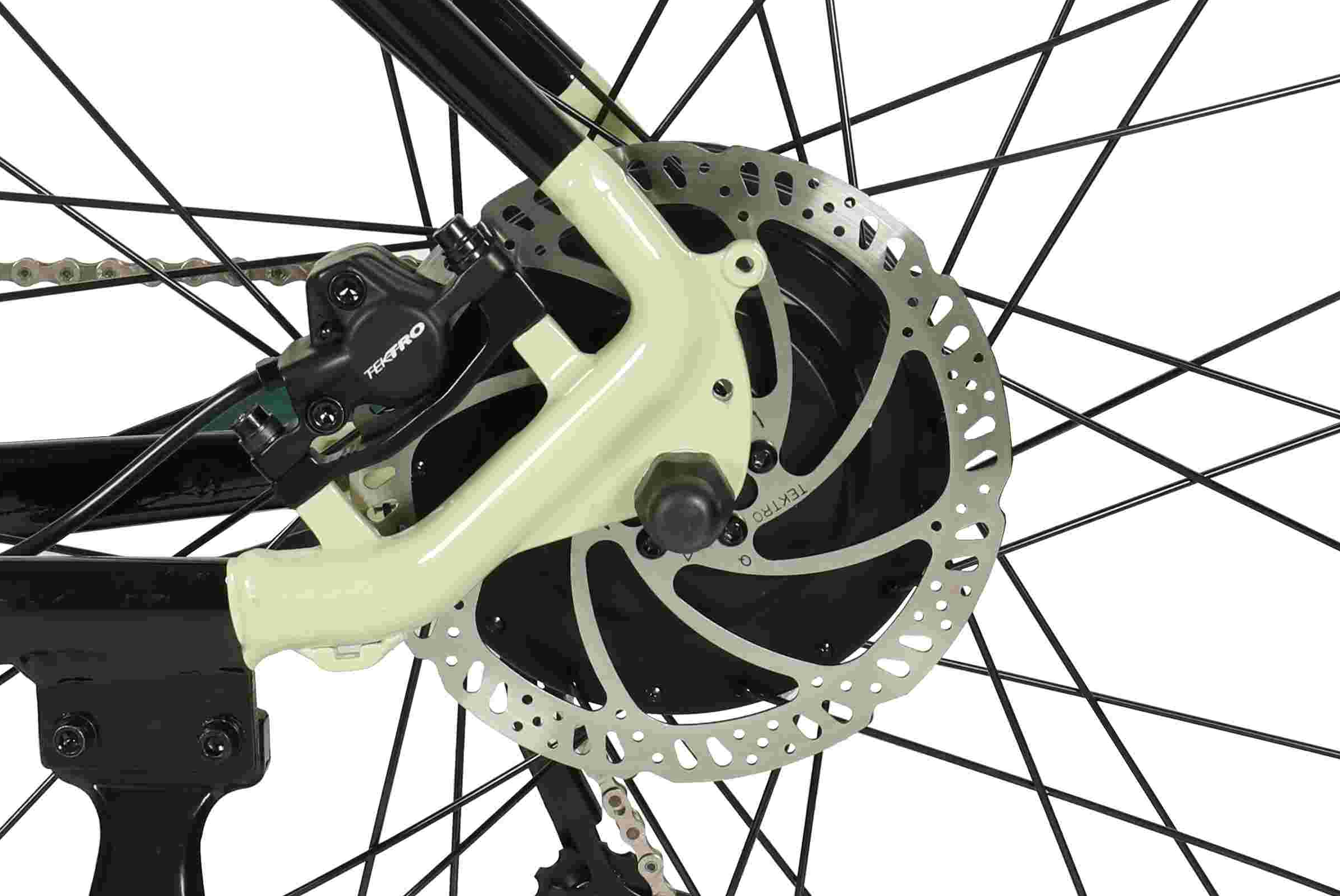

Front and Rear Disc Brake

When braking, high-pressure brake oil pushes the brake block to clamp the disc brake disc, which produces braking effect. Disc brake can rapid braking at high speed, excellent heat dissipation effect and good constancy of braking efficiency

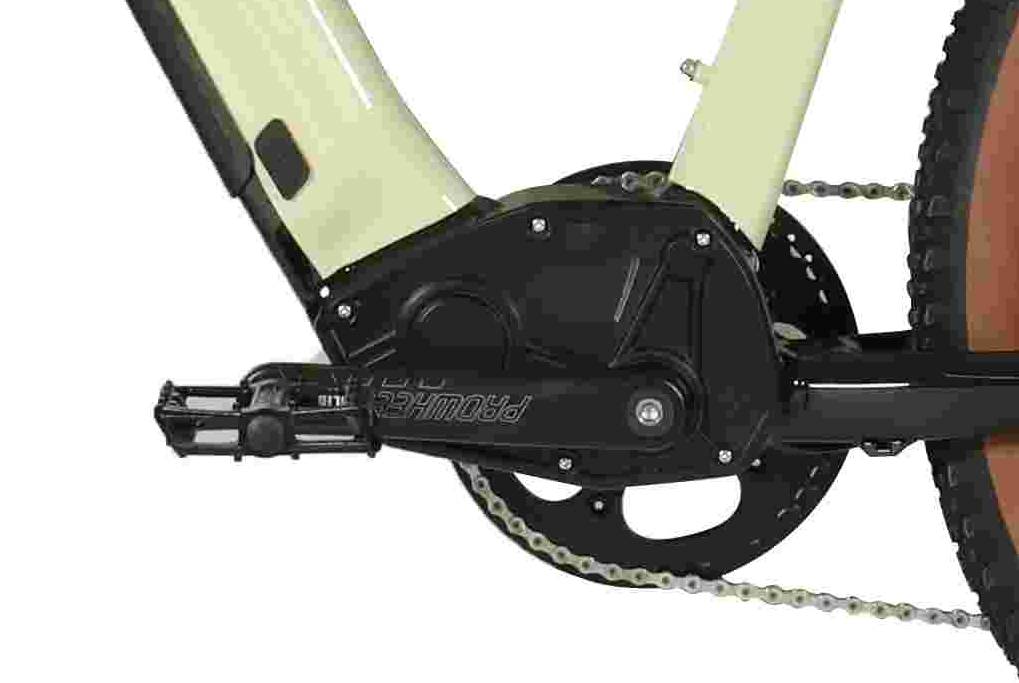

Controller Box

Imitation mid-motor controller box, good appearance and waterproof

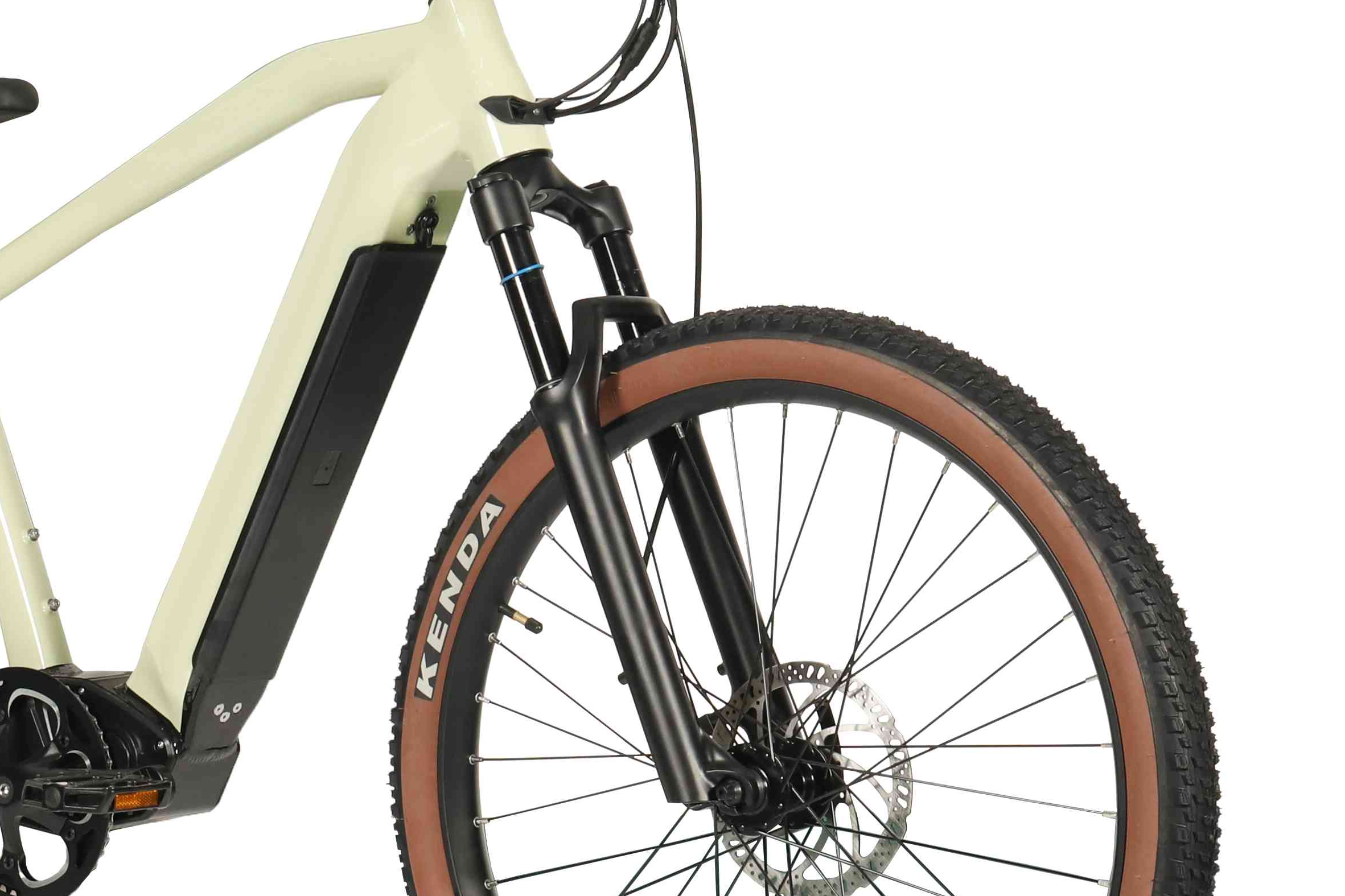

Front Suspension Fork

Aluminum Alloy Suspension Fork, Light weight, no rust, good hardness and rigidity in a short time, and it is the most common and excellent bicycle frame

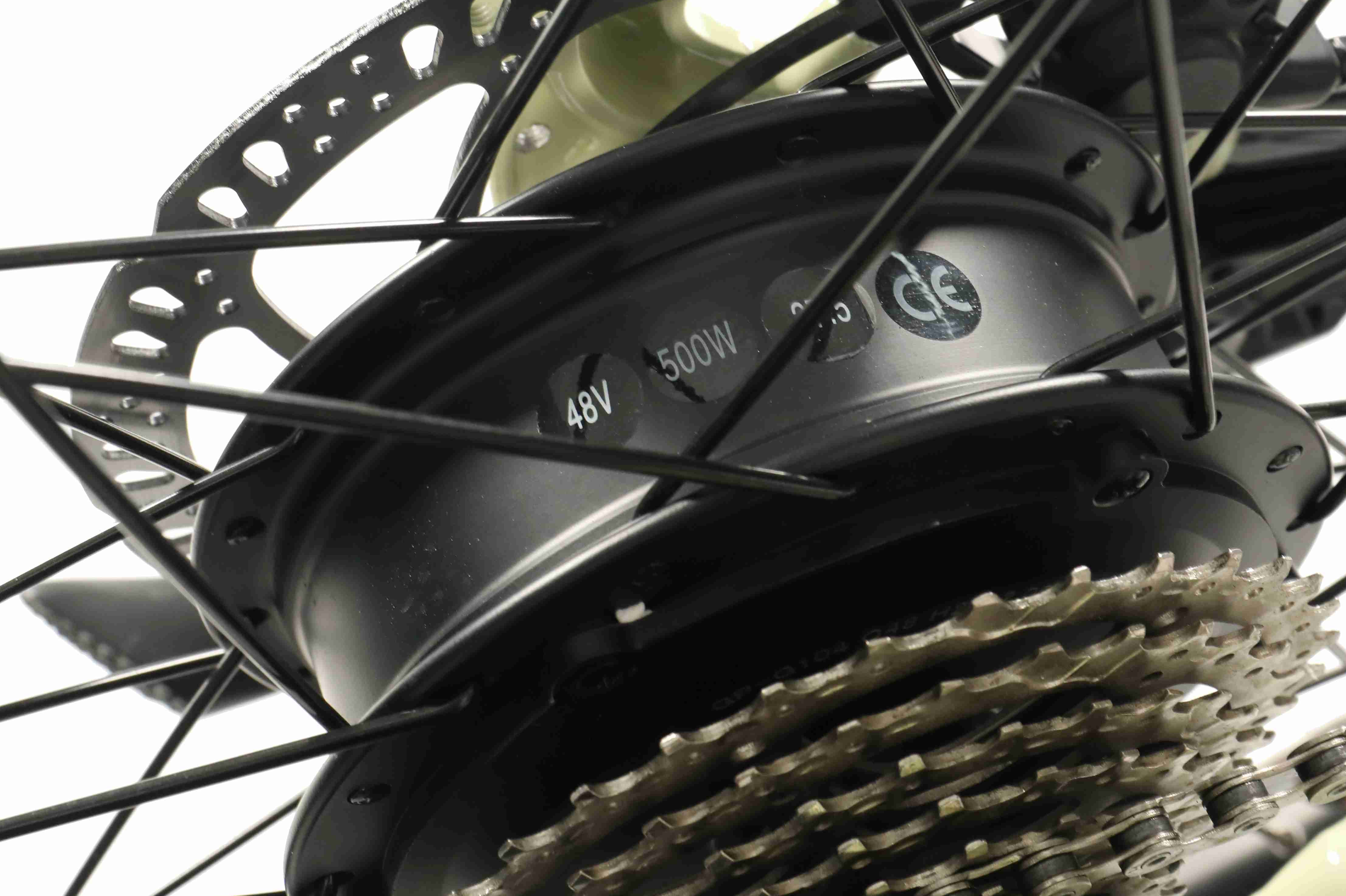

Greenpedel electric bike motor

Greenpedel 48V 500W hub motor. Suitable for mutifunctional bike and mountain bike, silent and powerful.

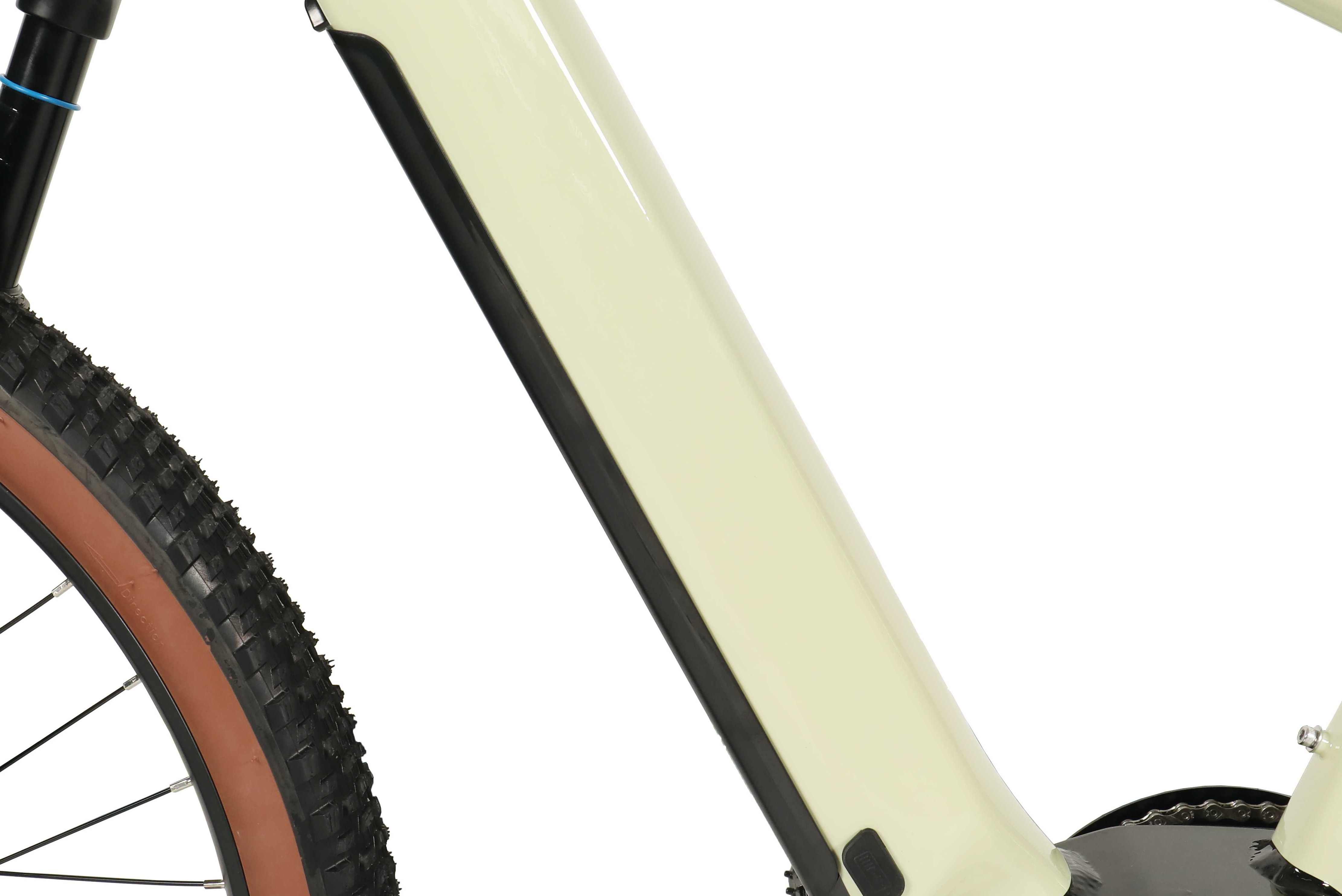

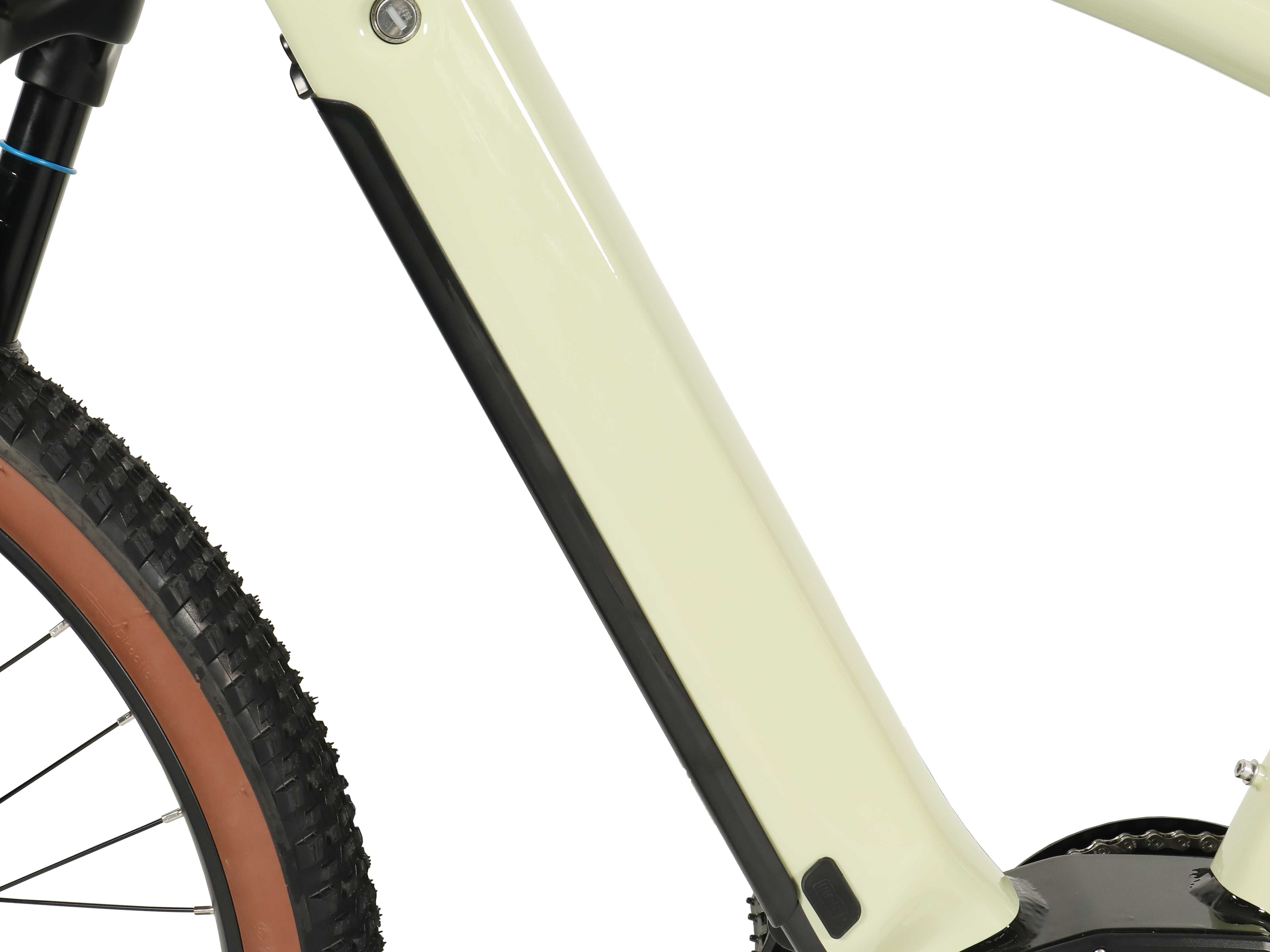

Lithium battery

48V 11.6AH lithim-ion battery. The whole battery is easy to disassemble, and the battery can be removed and charged at any position

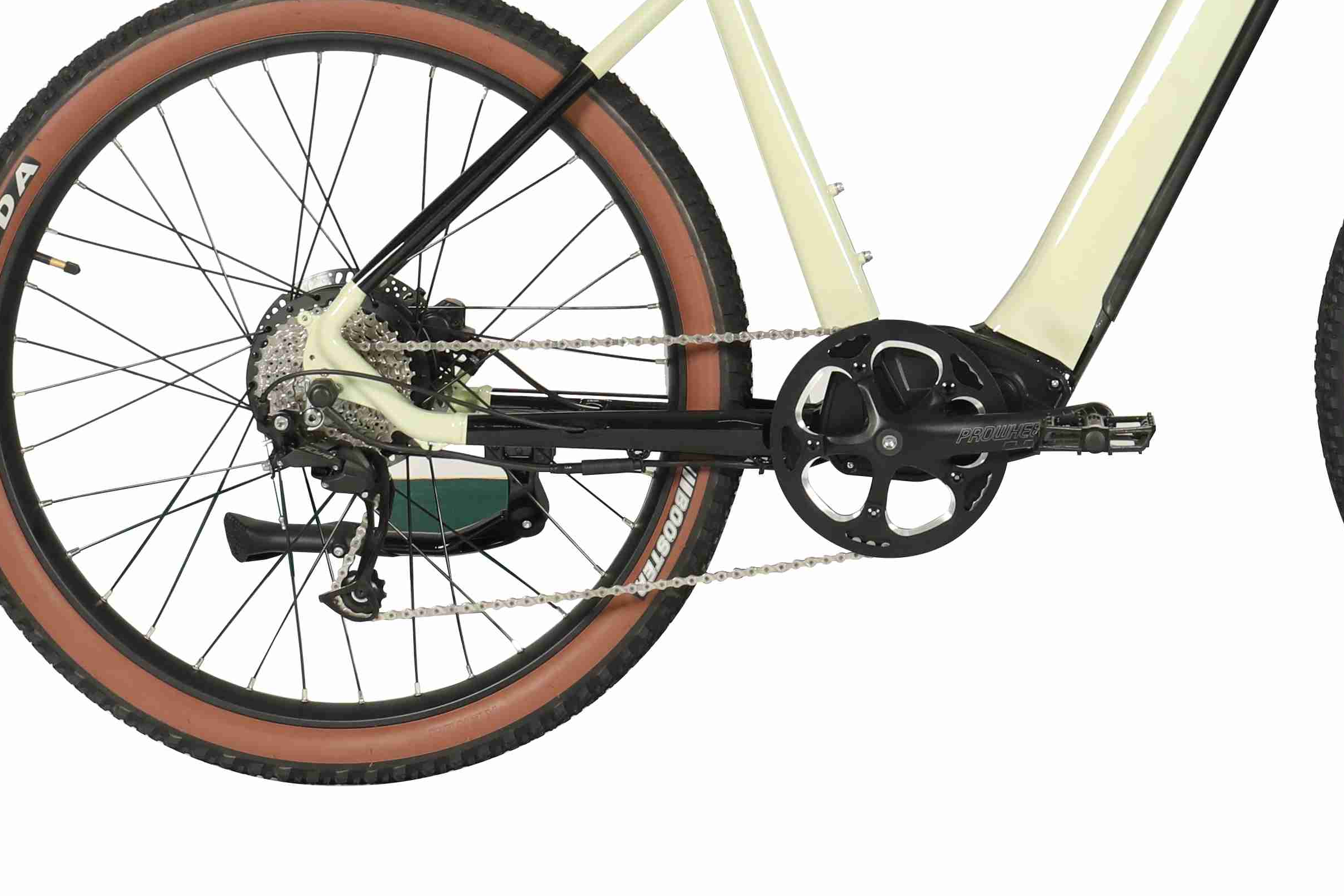

Shifter and Rear Derailleur

You can adjust the feeling of riding by shifting gears to achieve the best riding experience

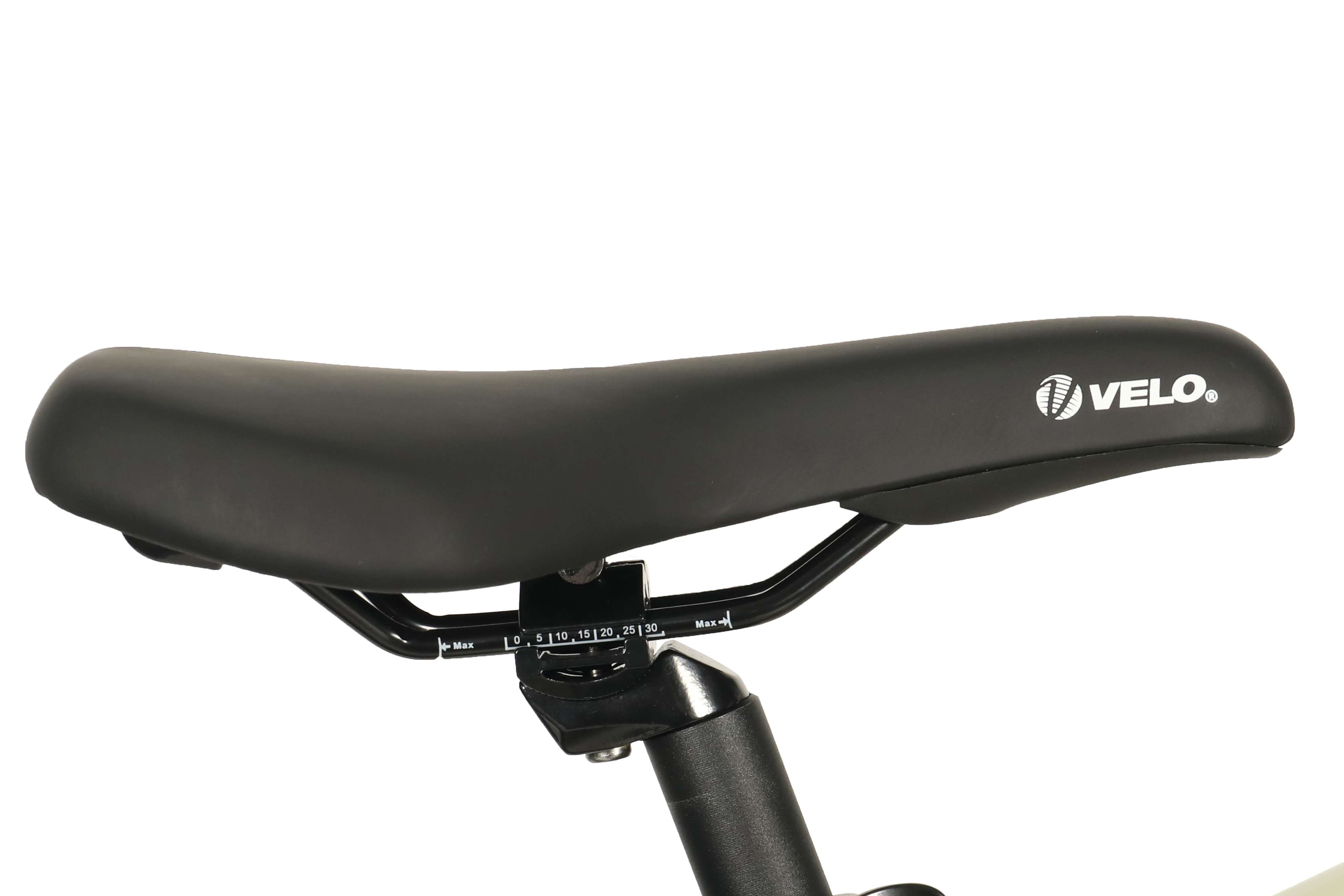

Comfortable Sadle

Thick and comfortable soft saddle, have a comfortable journey

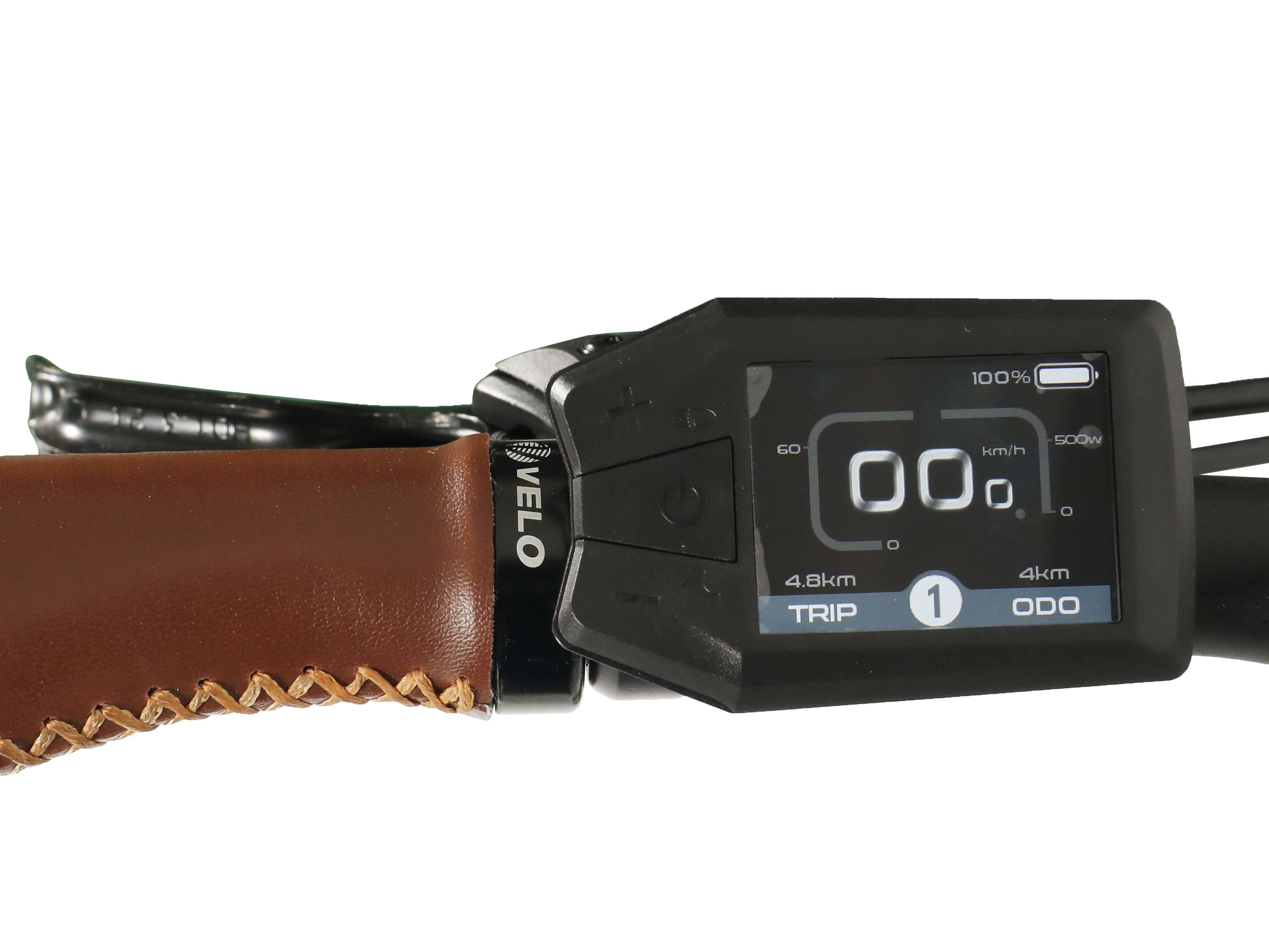

LCD display

It can show you the battery and speed information directly. Otherwise, you can change the lever by the up and down button.many other parameters can also be setting up

Green Pedel Quality Management

Product quality is the core of long-term cooperation

Improve the quality control management, we are always on the Road

Incoming Inspection

According to our inspection standards for incoming materials, our inspectors need to complete incoming materials inspection within 24 hours after the materials arrived

Inspection of Semifinished Product

For each part, we need to get the factory inspection report of the corresponding factory, and for the whole electric system, we need to carry out 100% inspection

System Loading Test

We have a cycling tester specially equipped. For new samples, we will arrange loading and cycling tests outdoors to ensure that the system matches and performance are completely correct

Finished Product Inspection

Before packing, QA will carry out sampling test of 5% of finished products according to finished product inspection standard, and keep inspection records

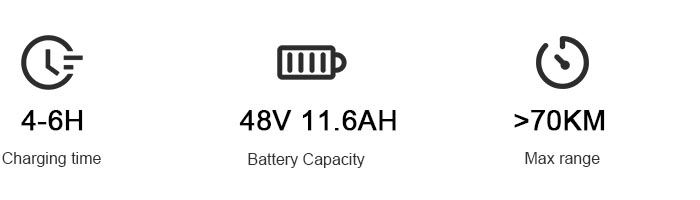

Electronic Details

Motor Type: Green pedel 48V 500W rear wheel hub motor
Motor Power: 48V 500W
Battery: 48V11.6AH, lithium battery
Estimated Charging time: 4-6H
Estimated Min And Max Range: 60-80KM (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Brake lever: Gemma hydraulic brake lever
Display: Display; power on/off, battery indicator, 0-5level assist
Front Light: Spanninga LED Light
Speed: EU:25km/h, USA:32km/h
Power Mode: Speed sensor

Bicycle Details

Frame: Aluminium Alloy 6061 Frame
Grip: VELO
Fork: Aluminum Alloy 6061 Fork
Brake: Front Gemma Hydraulic Disc Brake
Shifter: SHIMANO 7 Spd
Rear Derailleur: SHIMANO 7 Spd
Brake: Rear Gemma Hydraulic Disc Brake
Tire: 27.5*2.25 CST Brand
Pedal: WELLGO
Saddle: SR
Fenders: Front And Rear
Max Load: 125KG

Or maybe you'd prefer a different ebike?

GP-201607D

Smart folding electric bike,with 36v 250w front wheel brushless high speed motor, which is easily to be carried.

GP-261204A

Cheap electric city bike, 36v 250w rear wheel motor and 36v 9Ah lithium battery.Very fashion and popular in Europe.

GP-261503B

36v 350w rear wheel motor electric city bike,18" aluminium alloy frame and Kenda 26*2.3 tire. Very suitable for man.

GP-201201F

36v 500w popular fat tire electric folding bike,powerful motor with the mini ebike frame give you the feeling like never before.

GP-261201F

26 inch electric fat tire bicycle,sinewave speed sensor and the hall effect, high speed motor.Very popular in America.

The ebike has a G110R 48V 500W rear-wheel hub motor from Green Pedel, which is powered by a 48V 11.6Ah lithium-ion battery with 52 18650 or 40 21700 cells from New Qingnian Battery. The battery can be charged using a 54.6V 2A charger, and the system is controlled by a 48V 20A vector sine wave controller with a lighting template from Jinyuan Tai.

The bike is equipped with a pedal-assist sensor and a KD717 left-mounted 2.0" LCD display with a Type-C 5V charging port from Key-Disp. The bike frame is made of aluminum 6061 with a head tube and patchwork process, and the paint is baked in color.

The bike has a front suspension fork that can be oil-locked or air-locked, depending on the rider's preference. It also has 27.5" P25DE double-layer aluminum rims with rivets from Powell and 27.5 x 2.25" black Innova IA-2569 mountain tires.

The bike is equipped with a mechanical brake lever, mechanical disc brakes with 180mm rotors, and a 7-speed Shimano Altus RD-M310-L rear derailleur with a Shimano SL-M315-7R 7-speed shifter. It also has a 46T iron chainring (Prowheel) that can be replaced with an aluminum one, a Prowheel aluminum crankset, and a KMC rust-proof 7-speed chain. The bike has a maximum speed of 25km/h in the EU and 32km/h in the USA and can produce a maximum torque of 55N.m.

The bike has a black leather seat, an aluminum seat post, and aluminum pedals. The bike has a net weight of 23kg and can carry a maximum load of 150kg. It has a range of 45-50km on throttle mode and 70-75km on pedal-assist mode, depending on the actual riding conditions. The bike can be customized with different options, including a 48V 500W rear hub motor, a 48V 15Ah LG/Samsung battery, a 54.6V 3A charger, a GA-900 hydraulic disc brake system, and a C4000 LED front light from Sate-Lite.
