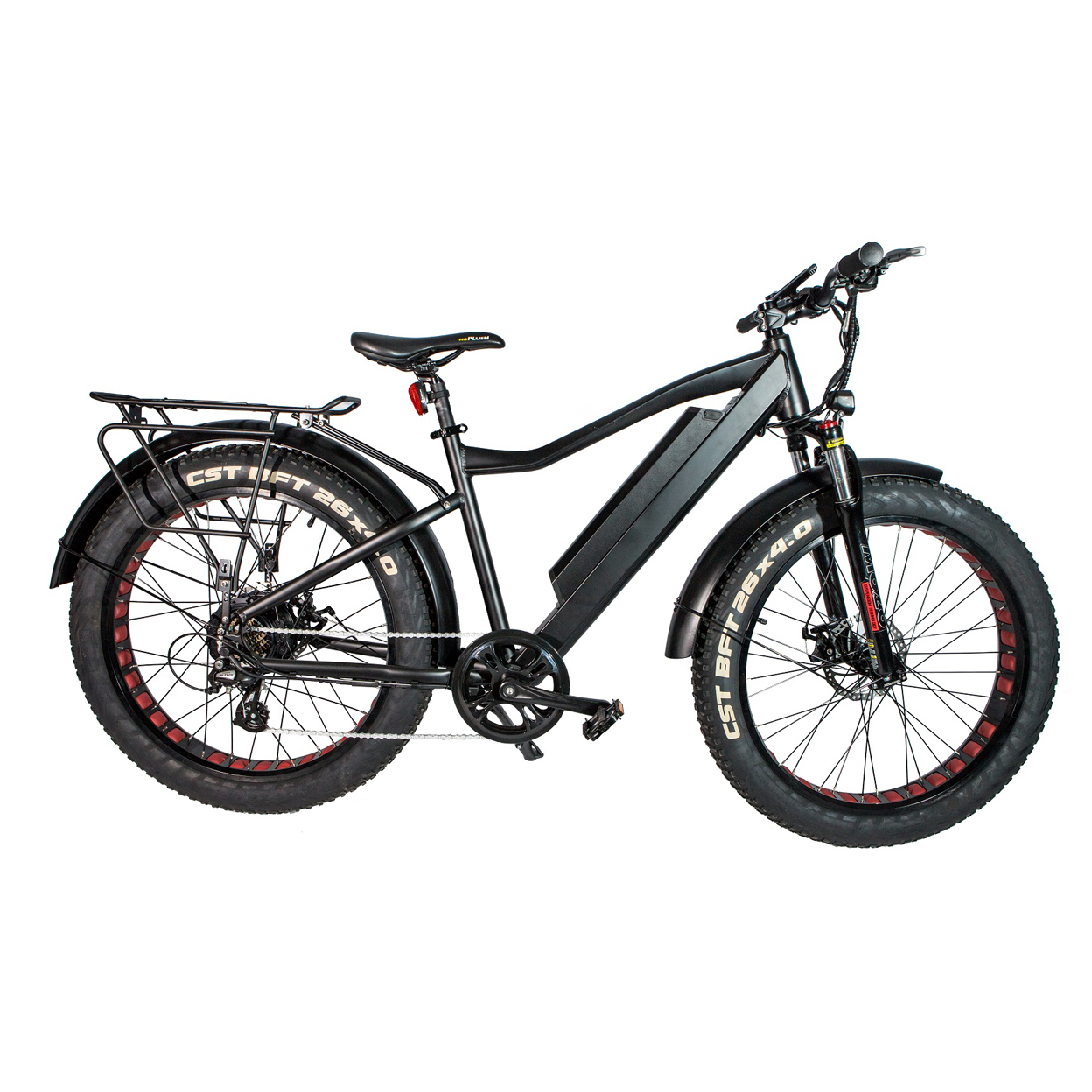

48v 500w 26 inch fat tire electric bicycle

48V 500W 26 inch rear wheel fat tire electric bike

GP-261201F

The popular 48v 500w powerful electric bike fat tire motor with the high capacity lithium battery, enjoy the powerful and long-lasting riding.

Inquire

Greenpedel Electric Bike Customized Service

Battery capacity can be customized with different cells

Display can be customized with LED, LCD, colorful modes

Brake lever, throttle, PAS can be customized

Tires can be customized with different brands

Saddle, pedal, grip can be customized with different types and brands

Anything you want to customized please be free to contact us

Motor

The motor on this Greenpedel electric bike is a powerful and efficient 48V 500W fat tire geared wheel hub motor. It is designed with the company's own design patent, making it a unique and exclusive feature of this bike. The motor is specifically designed for fat tire bikes, making it suitable for off-road adventures and other challenging terrains.

The motor is a rear wheel 500W brushless motor with a hall effect sensor for reliable and smooth acceleration. The high-speed capability of this motor allows the bike to reach speeds of up to 38KM/H, providing a thrilling and exhilarating riding experience.

One of the unique features of this motor is its silent operation, making it an excellent choice for riders who value quiet and peaceful riding. Despite its silent operation, the motor is incredibly powerful, making it suitable for challenging terrains and uphill climbs.

Powerful Battery

The Greenpedel electric bike is equipped with a high-quality and reliable 48V 13AH lithium battery manufactured by Samsung. The battery is capable of providing long-lasting and dependable power to the motor, allowing riders to travel up to 30-60 kilometers, depending on the riding style, terrain, rider weight, and pedal assist level.

One of the unique features of this battery is its convenient charging capabilities. The charging cable can be directly connected to the bike, making it easy to charge the battery from any location. Additionally, the battery can be removed within one second, allowing it to be charged in any location, such as your living room or office.

For riders who need even more power, an extra battery can be purchased and stored in a bag or office, allowing for easy switching of batteries to keep the ride going.

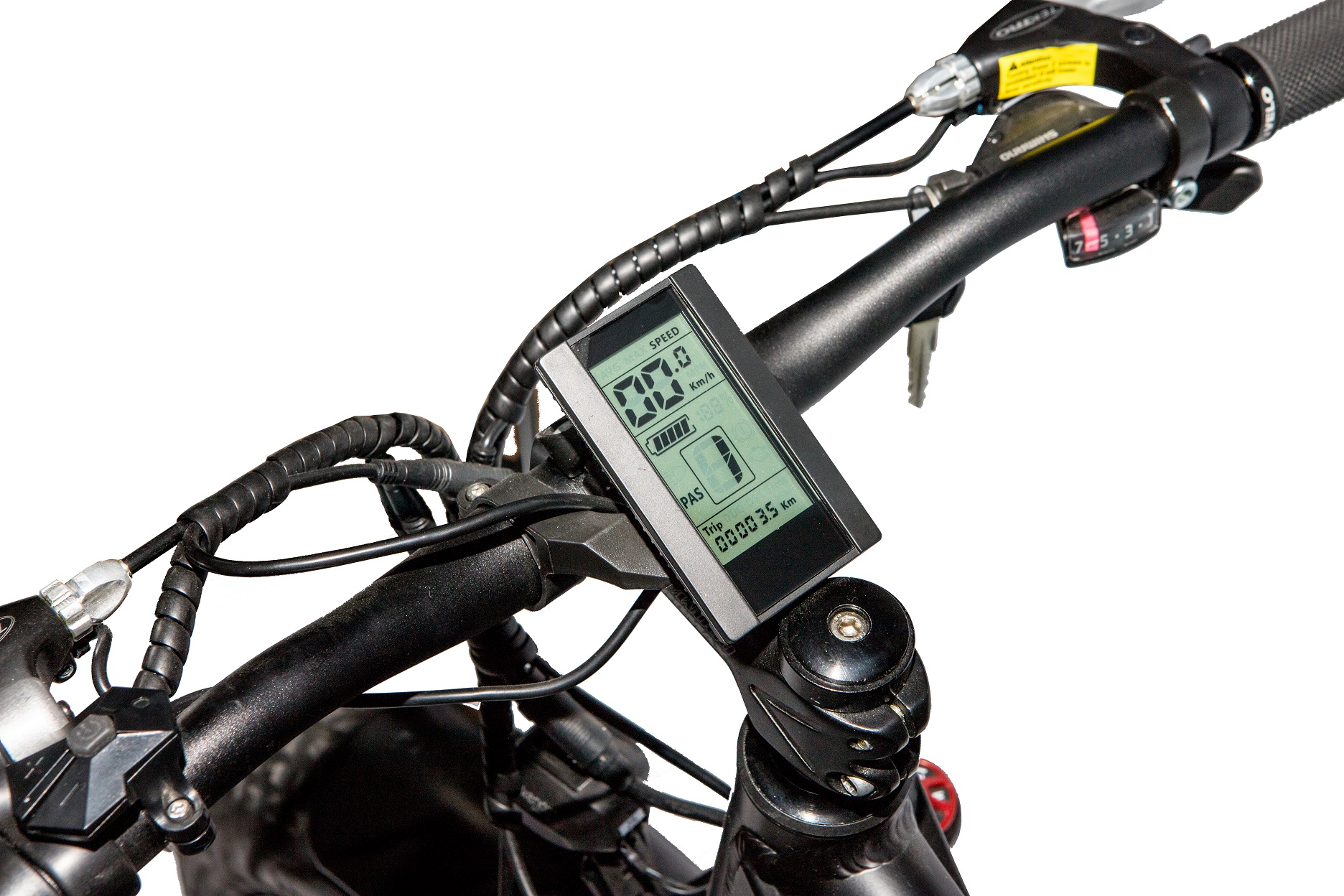

LCD Display

The intelligent LCD display can show you the battery and speed infromation

directly. Otherwise, you can change the lever by the up and down button.

Many other parameters can also be setting up.

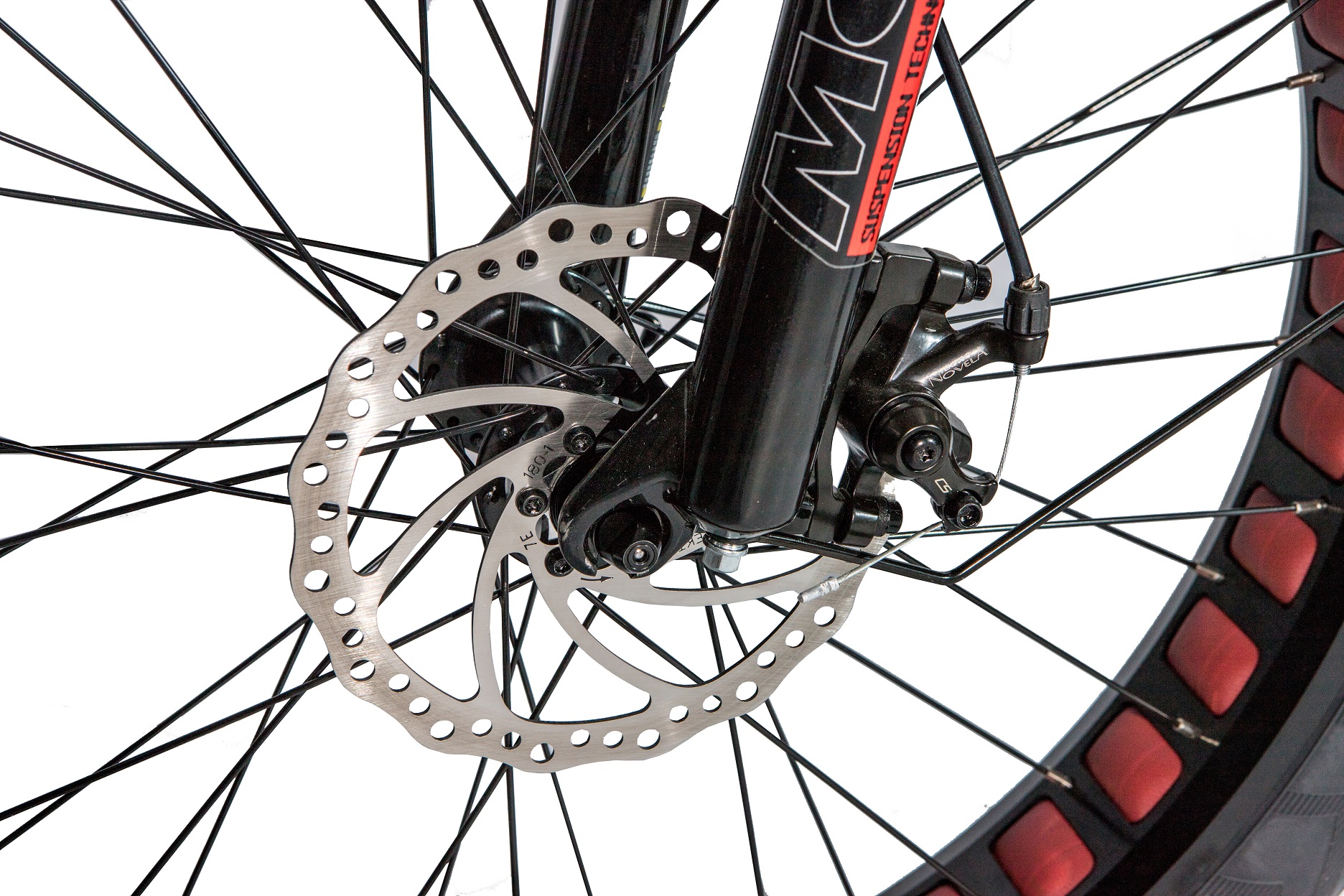

Front and Rear Disc Brake

When braking, high-pressure brake oil pushes the brake block to clamp the disc brake disc, which produces braking effect. Disc brake can rapid braking at high speed, excellent heat dissipation effect and good constancy of braking efficiency

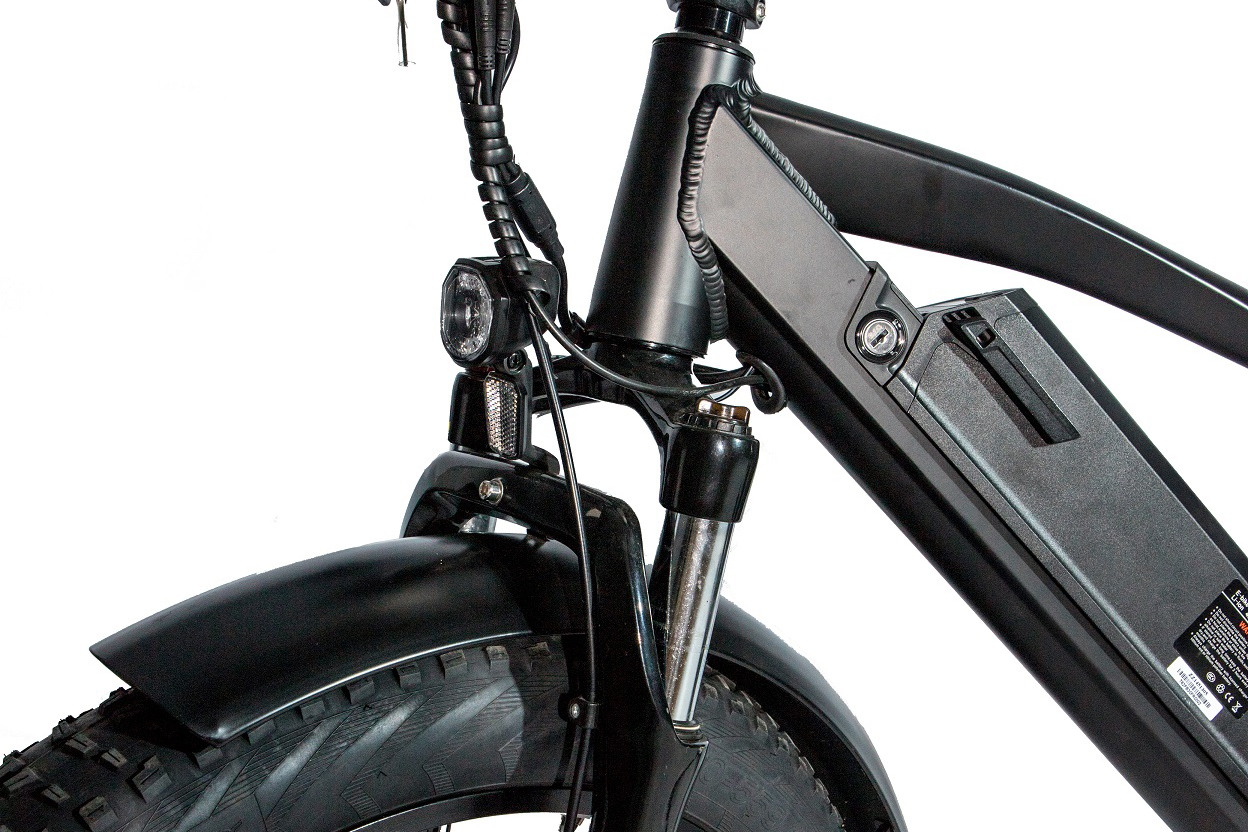

Integrated Front Light

The headlamp combines a powerful light beam with a modern and very compact shape. It is a universal headlamp with an efficient light output, which fits perfectly to the design of all types of bicycles.

Front Suspension Fork

Suntour Alloy Suspension Fork, Light weight, no rust, good hardness and rigidity in a short time, and it is the most common and excellent bicycle frame

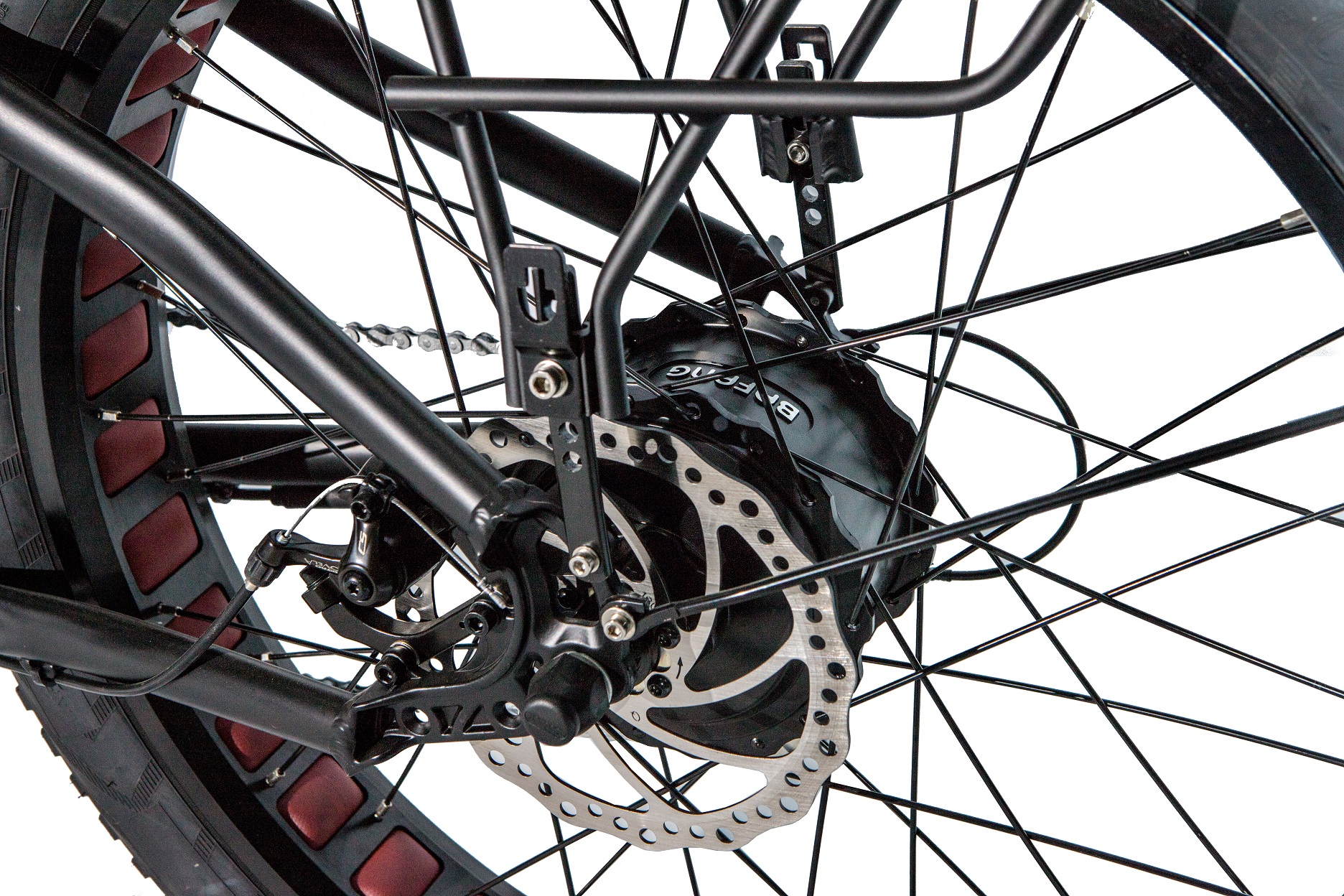

Rear Wheel Ebike Motor

Greenpedel 48V, rear wheel 500W brushless ,hall effect,high speed motor. Motor designed according to EU standard for road legal,with our own design patent. Suitable for city bike and mountain bike,silent and powerful.

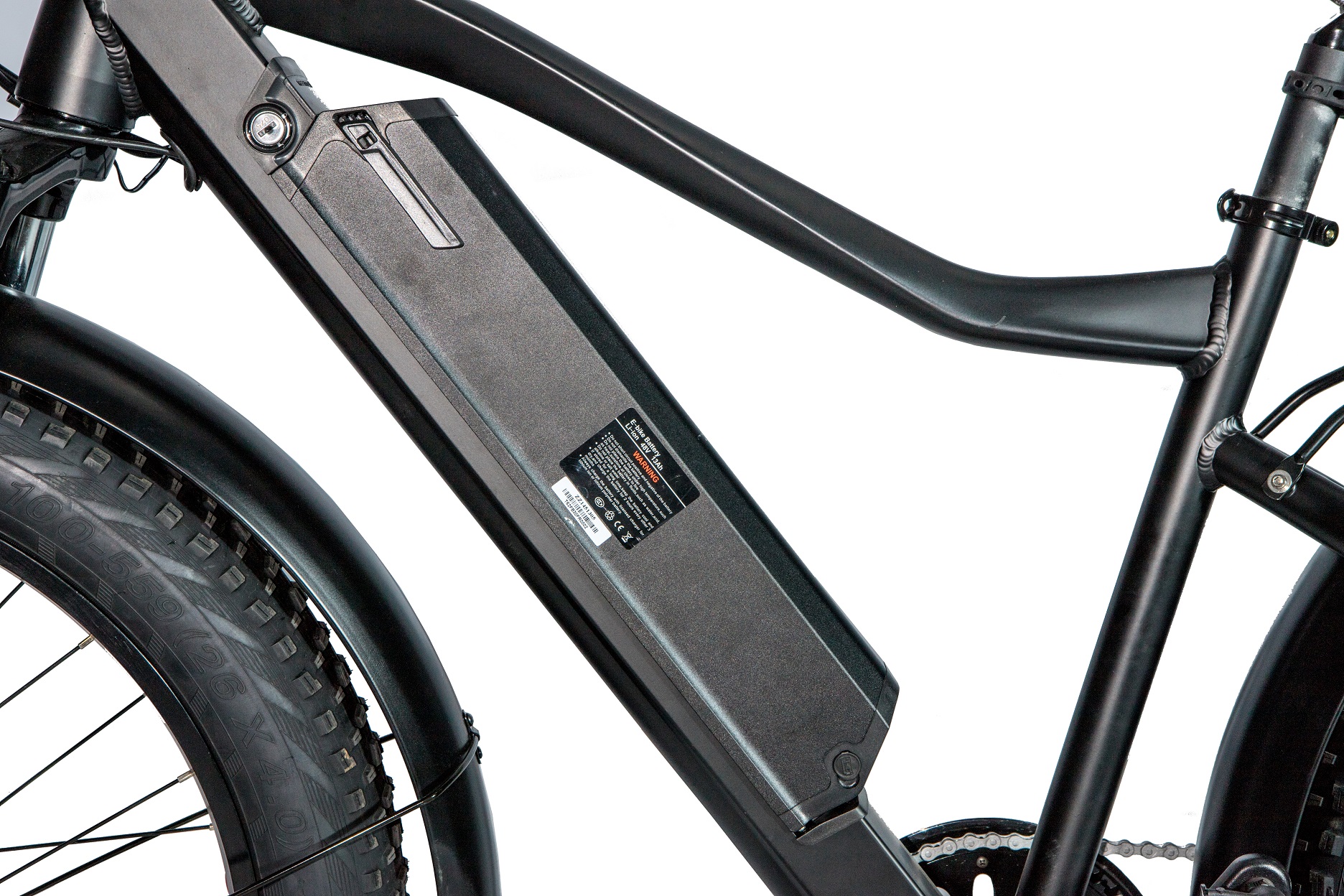

Lithium battery

48V 13AH lithim-ion battery with LG cells.The whole battery is easy to disassemble, and the battery can be removed and charged at any position.

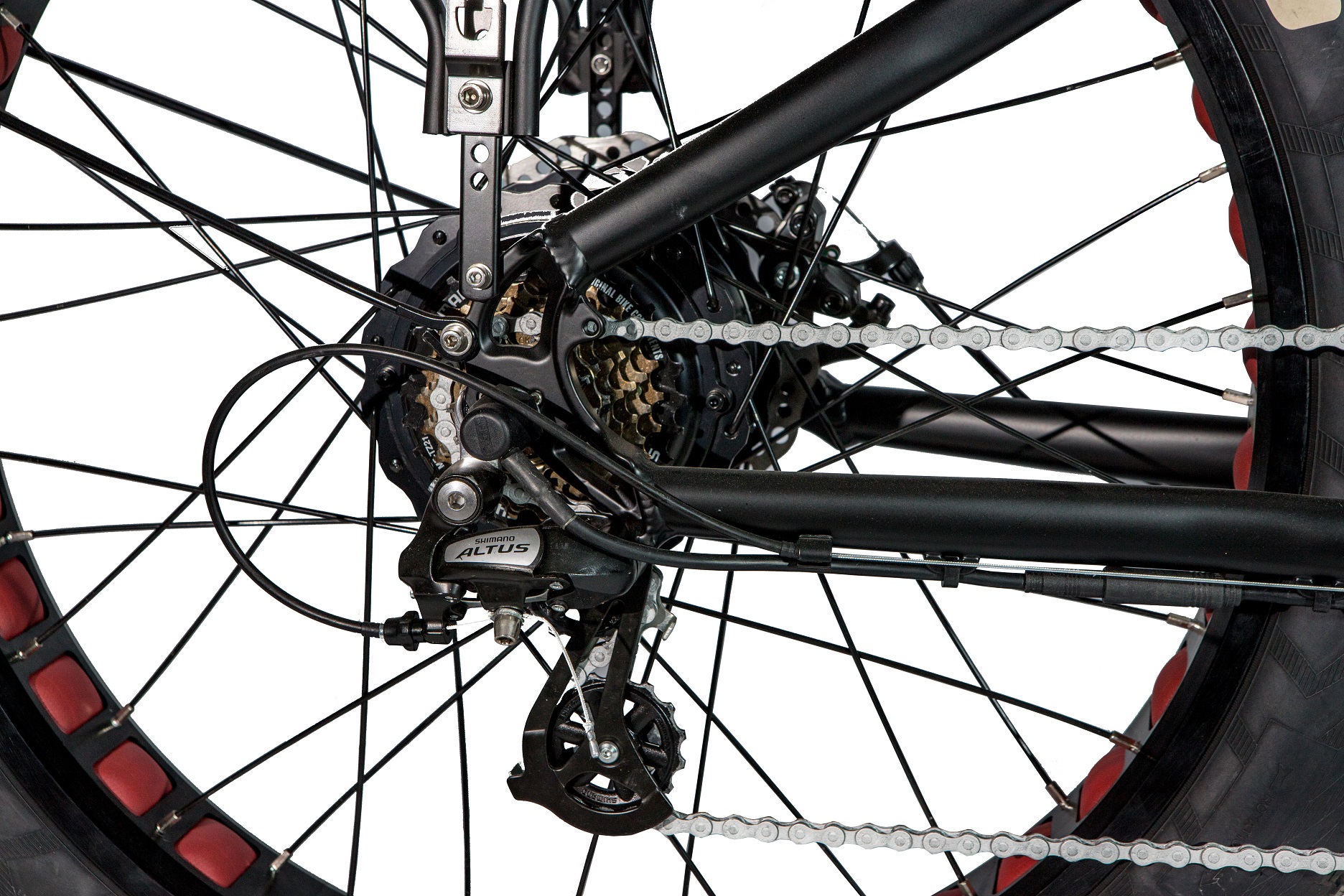

Shifter and Rear Derailleur

7-speed shimano ALTUS shifter and rear derailleur.You can adjust the feeling of riding by shifting gears to achieve the best riding experience

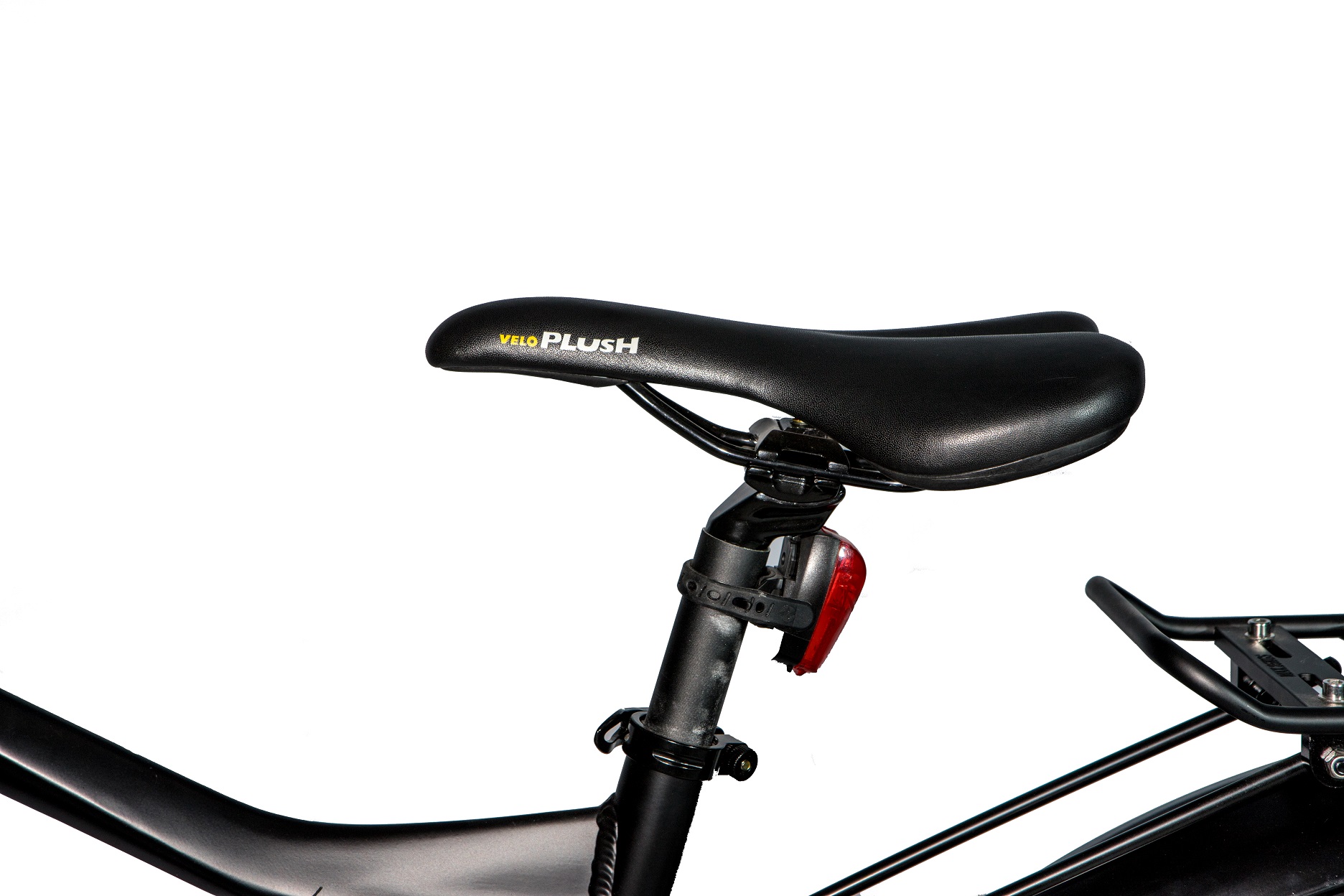

VELO Saddle

High quality VELO saddle, have a comfortable journey

Intelligent LCD display

It can show you the battery and speed information directly. Otherwise, you can change the lever by the up and down button.many other parameters can also be setting up.

Green Pedel Quality Management

Product quality is the core of long-term cooperation

Improve the quality control management, we are always on the Road

Incoming Inspection

According to our inspection standards for incoming materials, our inspectors need to complete incoming materials inspection within 24 hours after the materials arrived

Inspection of Semifinished Product

For each part, we need to get the factory inspection report of the corresponding factory, and for the whole electric system, we need to carry out 100% inspection

System Loading Test

We have a cycling tester specially equipped. For new samples, we will arrange loading and cycling tests outdoors to ensure that the system matches and performance are completely correct

Finished Product Inspection

Before packing, QA will carry out sampling test of 5% of finished products according to finished product inspection standard, and keep inspection records

Electronic Details

Motor Type: Greenpedel 48V Rear wheel 500W Brushless,Hall effect,high speed Motor
Motor Power: 48V 500W
Battery : 48V13AH,lithium battery SAMSUNG
Estimated Charging time : 4-6H
Estimated Min And Max Range :30-60KM (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Brake lever : Promax BRAKE LEVER
Display : Display ; power on/off , battery indicator , 0-5 level assist
Front Light : HL2800 Spanninga Kendo LED Light
Speed : EU:25km/h, USA:32km/h
Power Mode : Sine-wave Speed sensor

Bicycle Details

Frame :19" Aluminium Alloy Frame
Grip :VELO
Fork : Alloy Suspension Fork
Brake : Front TEKTRO Disc Brake
Shifter : SHIMANO TOURNEY 7 Spd
Rear Derailleur : SHIMANO TOURNEY 7 Spd
Brake : Rear TEKTRO Disc Brake
Tire : CST 26*4.0
Pedal : WELLGO
Saddle : VELO
Crank : PROWEEL
Fenders : Front And Rear
Max Load : 125KG
Carton Size : 1560*320*900MM

Or maybe you'd prefer a different ebike?

GP-201607D

Smart folding electric bike,with 36v 250w front wheel brushless high speed motor, which is easily to be carried.

GP-261204A

Cheap electric city bike, 36v 250w rear wheel motor and 36v 9Ah lithium battery.Very fashion and popular in Europe.

GP-261503B

36v 350w rear wheel motor electric city bike,18" aluminium alloy frame and Kenda 26*2.3 tire. Very suitable for man.

GP-201201F

36v 500w popular fat tire electric folding bike,powerful motor with the mini ebike frame give you the feeling like never before.

GP-261201F

26 inch electric fat tire bicycle,sinewave speed sensor and the hall effect, high speed motor.Very popular in America.

The Greenpedel 48V Rear Wheel 500W Brushless Electric Bike is a powerful and efficient electric bike designed for adventurous riders who love to explore off-road terrain. It features a 48V 500W brushless motor that delivers high-speed performance and is equipped with a hall effect sensor for reliable and smooth acceleration. The motor is powered by a 48V 13AH lithium battery manufactured by Samsung, which provides a long-lasting and dependable power source.

This electric bike is capable of achieving an estimated range of 30-60 kilometers, depending on factors such as terrain, rider weight, and pedal assist level. The bike comes with three drive modes, including cadence sensing pedal assist, trigger throttle, and walk mode, making it easy to switch between modes depending on your riding preference.

The bike is constructed with a sturdy 19-inch aluminum alloy frame and features a suspension fork for comfortable riding on uneven terrain. The front and rear TEKTRO disc brakes ensure reliable and efficient stopping power, while the SHIMANO TOURNEY 7-speed shifter and rear derailleur allow for smooth gear transitions.

The fat tires, measuring 26*4.0 inches, provide excellent traction and stability on rough and slippery terrain, while the fenders on the front and rear wheels protect you from mud and debris. The bike also comes with a powerful front light, the HL2800 Spanninga Kendo LED Light, for added safety when riding at night.

The VELO grips and saddle ensure comfortable riding, and the PROWEEL crank and WELLGO pedals ensure efficient power transfer from your legs to the bike. With a maximum load capacity of 125KG, this electric bike is suitable for riders of various sizes and weights.
