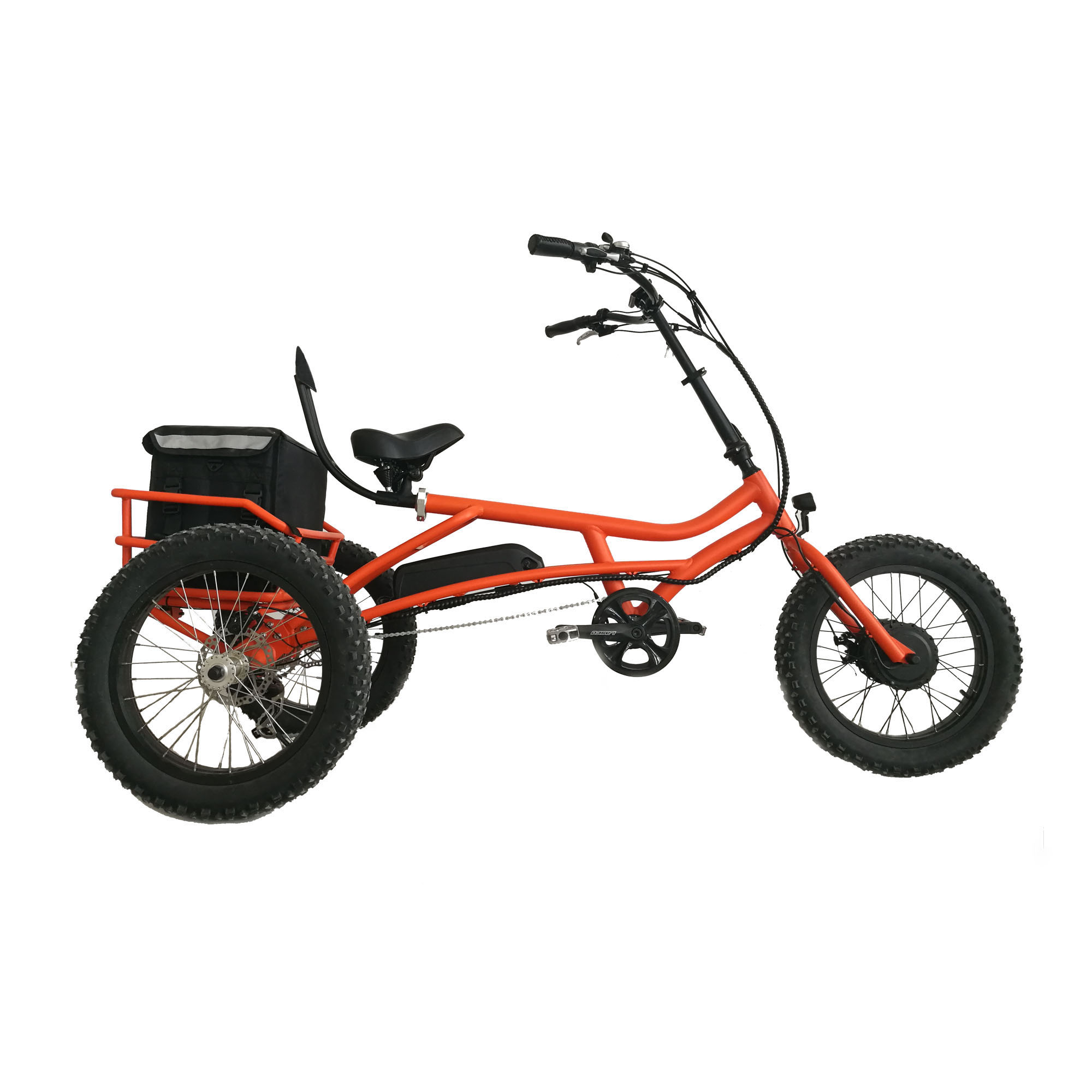

48V 500W 20 inch 3 wheel fat tire fashion electric cargo bike
GP-18003
The new Greenpedel seamlessly blends rugged capabilities and exceptional comfort. With 500w front motor and 17Ah battery, our electric tricycle is perfect for load and everything in between. It's no wonder the best-selling electric tricycle.

Greenpedel Electric Bike Customized Service

  Battery capacity can be customized with different cells
  Display can be customized with LED, LCD, colorful modes
  Brake lever, throttle, PAS can be customized
  Tires can be customized with different brands
  Saddle, pedal, grip can be customized with different types and brands
  Anything you want to customized please be free to contact us
Motor

Greenpedel high torque 48V 500W geared motor designed with our own
design patent. Suitable for city bike and  mountain bike,silent and powerful.
48v 500w rear wheel electric bike motor,  hall effect, high speed, the speed
can reach 45KM/H.
Powerful Battery

Connect the charging cable to directly charge the electric bike. Remove the battery within one second, it can be charged in any location,
for example, your living room or office, Purchase an extra battery, put it in
your bag or office, switch them over at any time to keep on riding.
LCD Display

The intelligent LCD display can show you the battery and speed infromation
directly. Otherwise, you can change the lever by the up and down button.
Many other parameters can also be setting up.

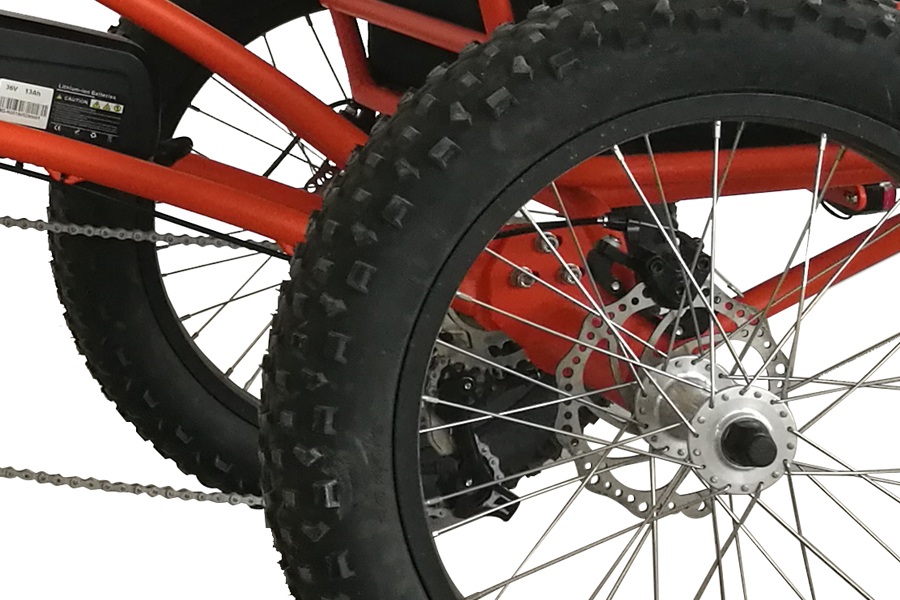

Front and Rear Disc Brake

When braking, high-pressure brake oil pushes the brake block to clamp the disc brake disc, which produces braking effect. Disc brake can rapid braking at high speed, excellent heat dissipation effect and good constancy of braking efficiency

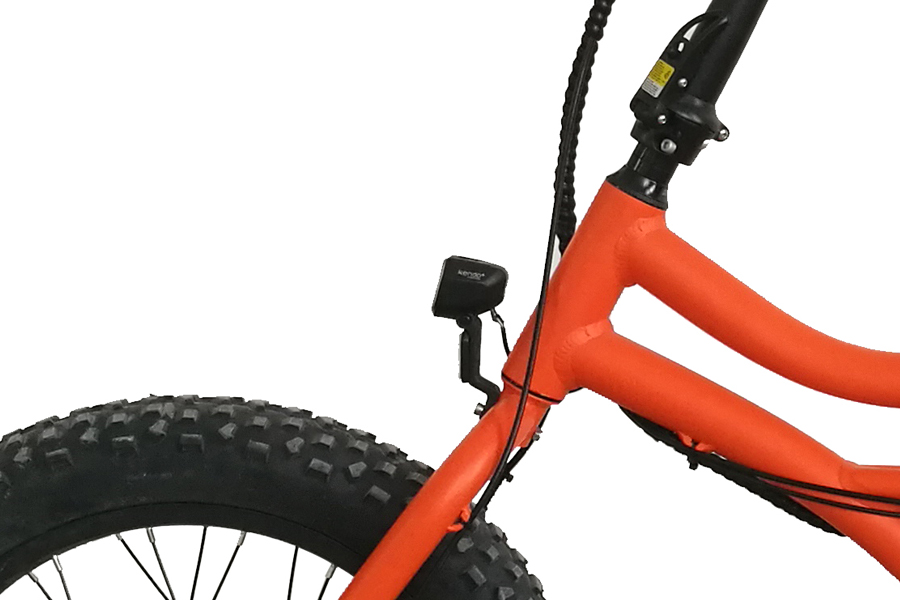

Integrated Front Light

The headlamp combines a powerful light beam with a modern and very compact shape. It is a universal headlamp with an efficient light output, which fits perfectly to the design of all types of bicycles.

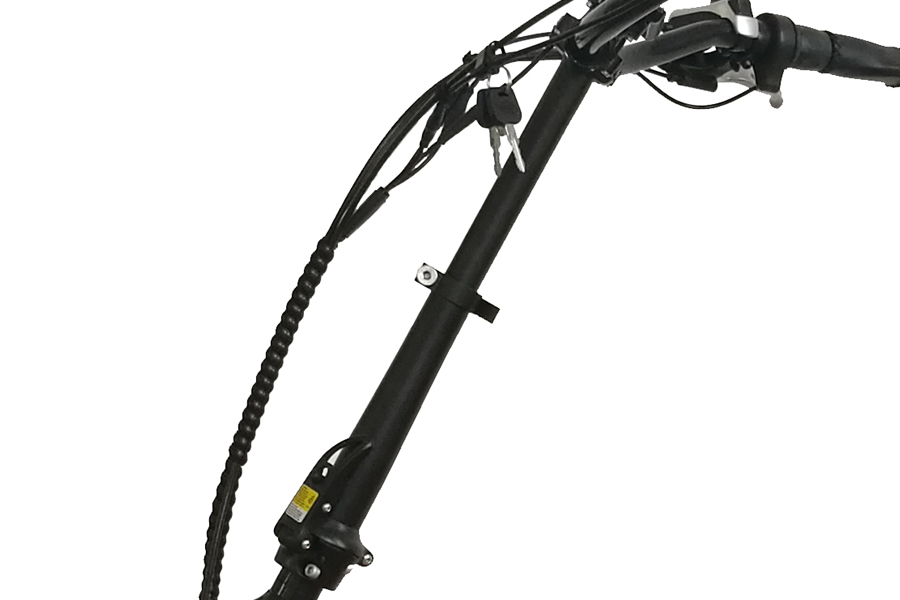

Front Suspension Fork

Suntour Alloy Suspension Fork, Light weight, no rust, good hardness and rigidity in a short time, and it is the most common and excellent bicycle frame

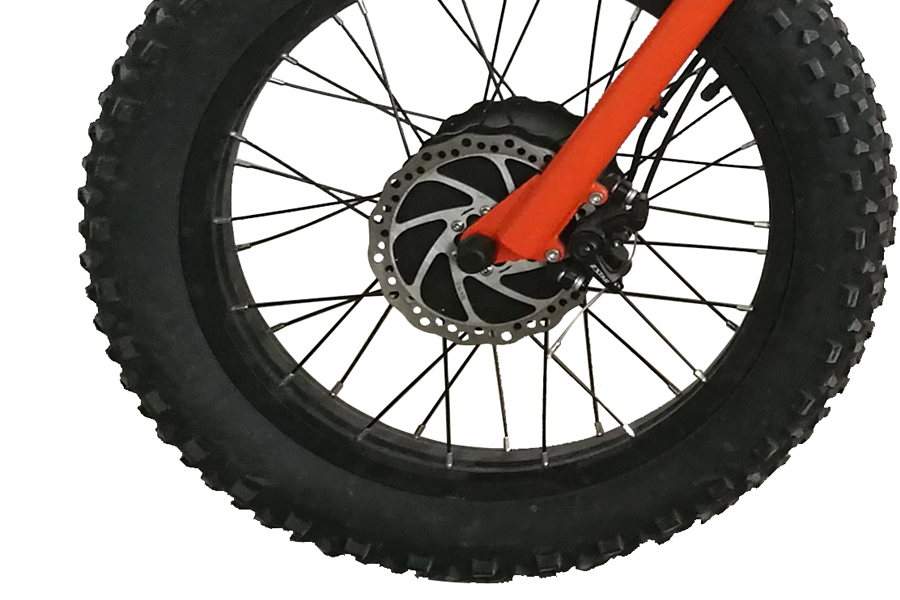

Rear Wheel Ebike Motor

Greenpedel 48V, front wheel 500W brushless ,hall effect,high speed motor. With our own design patent. Suitable for city bike and mountain bike,silent and powerful.

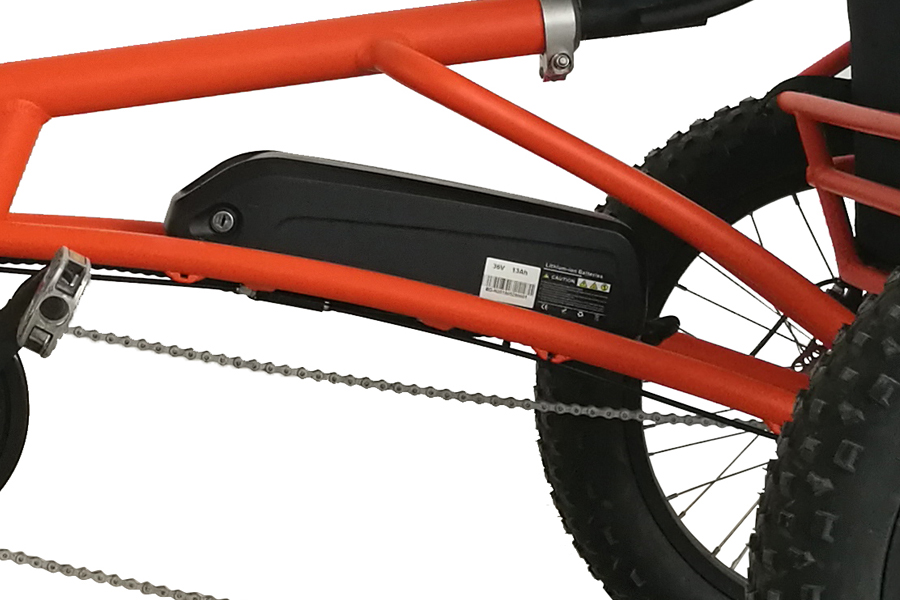

Lithium battery

48V 17AH lithim-ion battery.The whole battery is easy to disassemble, and the battery can be removed and charged at any position.

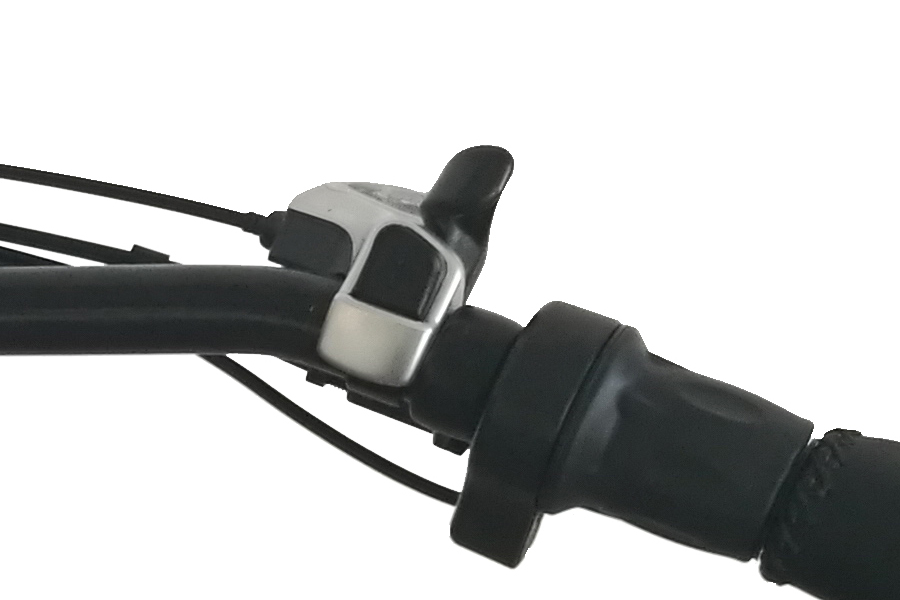

Shinamo shifter

You can adjust the feeling of riding by shifting gears to achieve the best riding experience

VELO Saddle

High quality VELO Saddle, have a comfortable journey

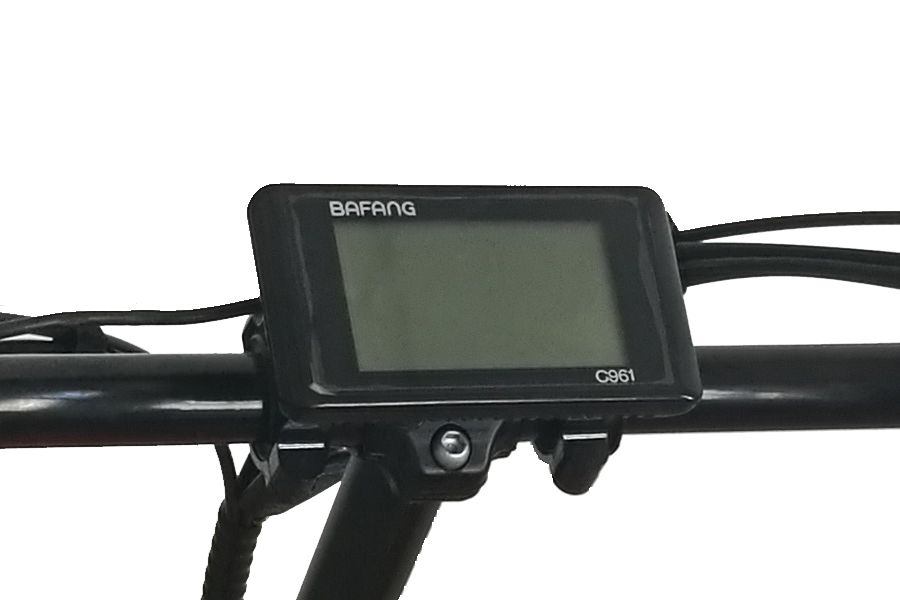

Intelligent LCD display

It can show you the battery and speed information directly. Otherwise, you can change the lever by the up and down button.many other parameters can also be setting up.

Green Pedel Quality Management

Product quality is the core of long-term cooperation

Improve the quality control management, we are always on the Road

System Loading Test

We have a cycling tester specially equipped. For new samples, we will arrange loading and cycling tests outdoors to ensure that the system matches and performance are completely correct

Inspection of Semifinished Product

For each part, we need to get the factory inspection report of the corresponding factory, and for the whole electric system, we need to carry out 100% inspection

Finished Product Inspection

Before packing, QA will carry out sampling test of 5% of finished products according to finished product inspection standard, and keep inspection records

Incoming Inspection

According to our inspection standards for incoming materials, our inspectors need to complete incoming materials inspection within 24 hours after the materials arrived
Electronic Details
Motor Type: Greenpedel 48V,Rear wheel 500W Brushless ,Hall effect,high speed Motor
Motor Power: 48V 500W
Battery : 48V 17AH,lithium battery
Estimated Charging time : 4-6H
Estimated Min And Max Range :>80 KM (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Brake lever : APSE BRAKE LEVER
Display : LCD Display ; power on/off , battery indicator , 0-5 level assist
Front Light : HL2800 Spanninga Kendo LED Light
Speed : 45km/h
Power Mode : Sine-wave Speed sensor
Rear Light : Spanninga LED light

Bicycle Details
Frame :Aluminium Alloy Frame
Grip :VELO
Fork : Aluminum Alloy Suspension Fork
Front Brake : TEKTRO Disc Brake
Rear Brake : TEKTRO  Disc Brake
Tire : kenda 20*4.0
Pedal : WELLGO
Saddle : VELO
Crank : PROWEEL
Fenders : Front And Rear
Max Load : 125KG
Carton Size : 1590mm*850mm*660mm


Or maybe you'd prefer a different ebike?

GP-201607D

Smart folding electric bike,with 36v 250w front wheel brushless high speed motor, which is easily to be carried.

GP-261204A

Cheap electric city bike, 36v 250w rear wheel motor and 36v 9Ah lithium battery.Very fashion and popular in Europe.

GP-261503B

36v 350w rear wheel motor electric city bike,18" aluminium alloy frame and Kenda 26*2.3 tire. Very suitable for man.

GP-201201F

36v 500w popular fat tire electric folding bike,powerful motor with the mini ebike frame give you the feeling like never before.

GP-261201F

26 inch electric fat tire bicycle,sinewave speed sensor and the hall effect, high speed motor.Very popular in America.
The 48v 500w Electric Bike can be said to be the popular electric tricycle which is very suitable for load. This electronic system includes 48V 500W Geared Hub Motor, a lithium battery, electronic controller, throttle, display, ebrake Lever, PAS. And the bicycle includes aluminium alloy frame, VELO grip, Aluminum alloy suspension fork, front and rear TEKTRO disc brake, kenda 20*4.0 tire, WELLGO pedal, VELO saddle, PROWHEEL crank, front and rear fenders.

Soar at nearly 45 kilometers per hour unassisted, and travel up to 80 kilometers between charges. When you reach your destination, simply remove the included Li-ion battery and charge it for your next journey. Our batteries are lightweight and dependable for a minimum of 800 cycles.
