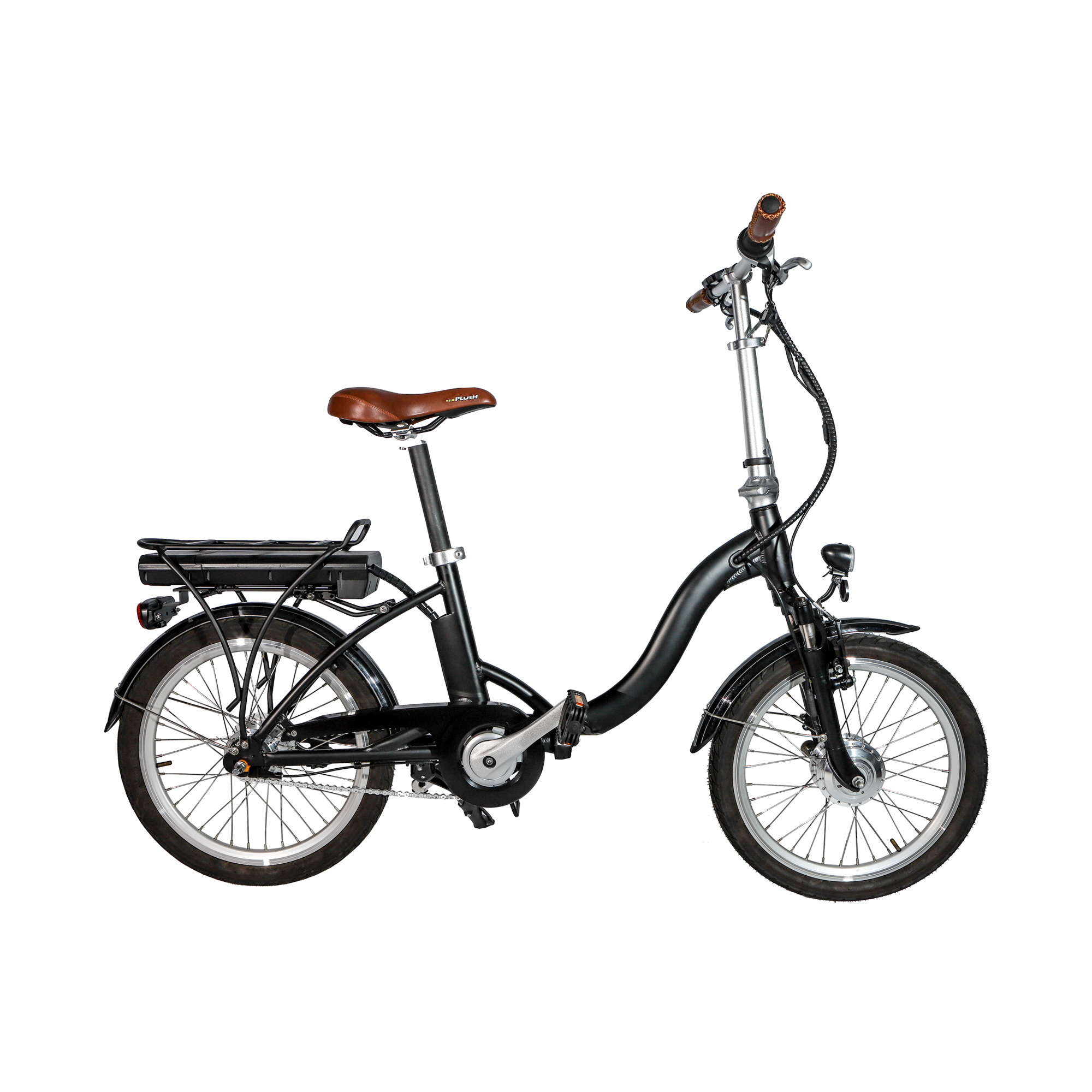

36V 250W 20 inch front wheel
electric folding bicycle
GP-201607D
The mini 36V 250W 20 inch electric bike, use the light 250w motor and mini folding electric bike frame, makes the electric bike easy to be carried.

Greenpedel Electric Bike Customized Service

  Battery capacity can be customized with different cells
  Display can be customized with LED, LCD, colorful modes
  Brake lever, throttle, PAS can be customized
  Tires can be customized with different brands
  Saddle, pedal, grip can be customized with different types and brands
  Anything you want to customized please be free to contact us
Motor

The motor used in this e-bike is a Greenpedel front wheel brushless, hall effect, high-speed motor. It is a 36V 250W geared wheel hub motor that is both silent and powerful. With its own design patent, this motor is one of the lightest on the market, weighing only 1.8kg. This makes it ideal for use in mini folding bikes and city bikes where weight is a crucial factor.

The motor is capable of propelling the bike to a top speed of 25km/h, making it suitable for urban commuting and short trips around the city. The hall effect technology provides precise control over the motor's speed and power delivery, ensuring a smooth and comfortable ride. With its brushless design, the motor also requires less maintenance compared to brushed motors and has a longer lifespan.
Powerful Battery

The battery of this ebike is a 36V 10.4Ah lithium-ion battery made by Samsung. The estimated charging time is 4-6 hours. The battery can power a 36V 250W Greenpedel front-wheel brushless motor with hall effect and high speed capabilities.

The estimated range of the ebike on a single charge is between 40-80 kilometers, depending on factors such as rider weight, terrain, riding style, and peddle assist level.

The battery can be charged by connecting the charging cable directly to the electric bike. It can be removed within one second and charged in any location, such as your living room or office. You can also purchase an extra battery, put it in your bag or office, and switch them over at any time to keep on riding.
LCD Display

The intelligent LCD display can show you the battery and speed infromation
directly. Otherwise, you can change the lever by the up and down button.
Many other parameters can also be setting up.

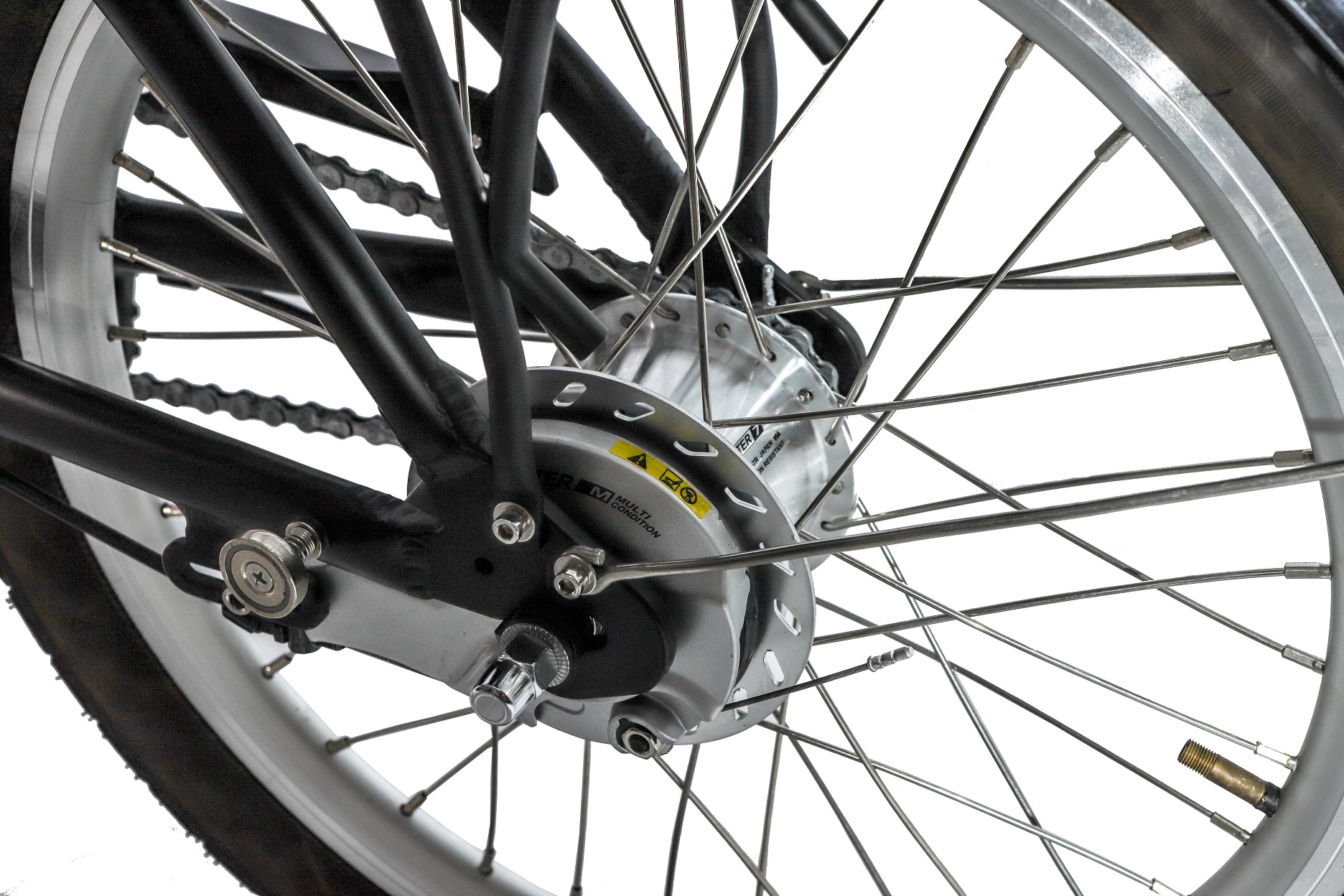

Rear Shimano Roller Brake

High efficiency, quick brake response, light operation and low failure rate, and will not be affected by the outside, such as the invasion of dust and rain. Almost zero wear, stable braking force, and good braking force can be obtained in fine weather or even rainy days

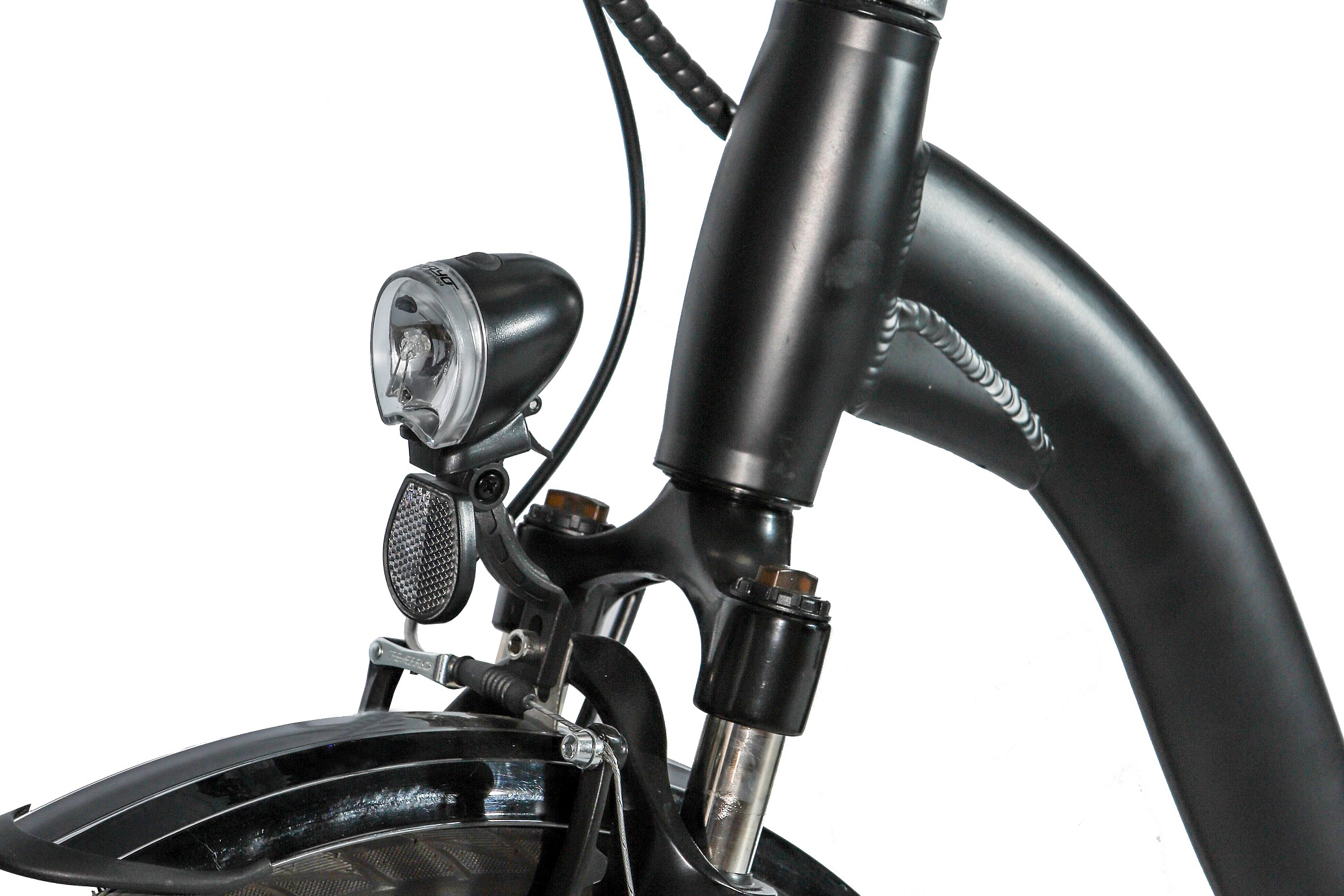

Integrated Front Light

The headlamp combines a powerful light beam with a modern and very compact shape. It is a universal headlamp with an efficient light output, which fits perfectly to the design of all types of bicycles

Front Suspension Fork

Zoom Alloy Suspension Fork, Light weight, no rust, good hardness and rigidity in a short time, and it is the most common and excellent bicycle frame

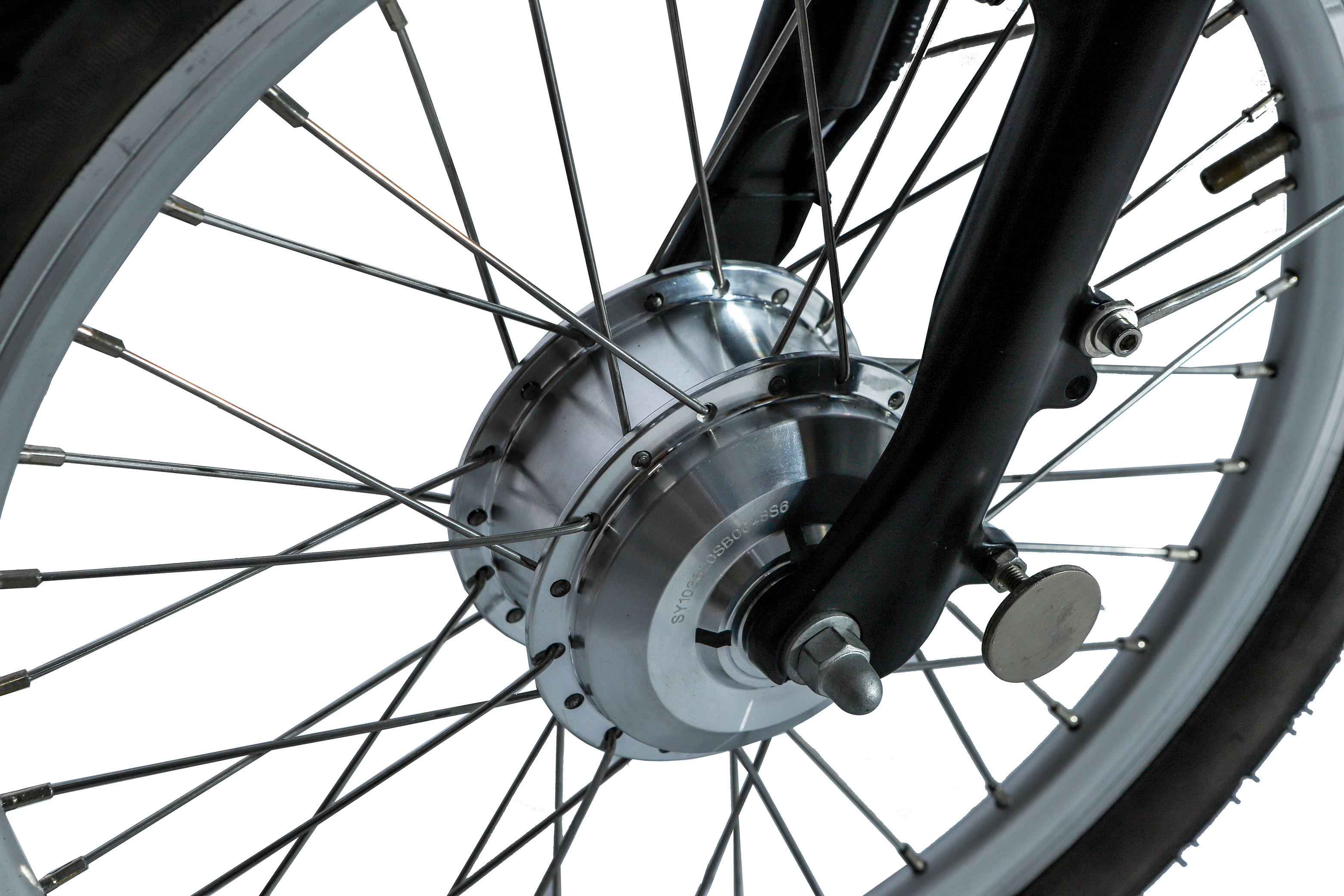

Front Wheel Ebike Motor

Greenpedel 36V, front wheel 250W brushless ,hall effect,high speed motor. Motor designed according to EU standard for road legal,with our own design patent. Suitable for city bike and mountain bike,silent and powerful

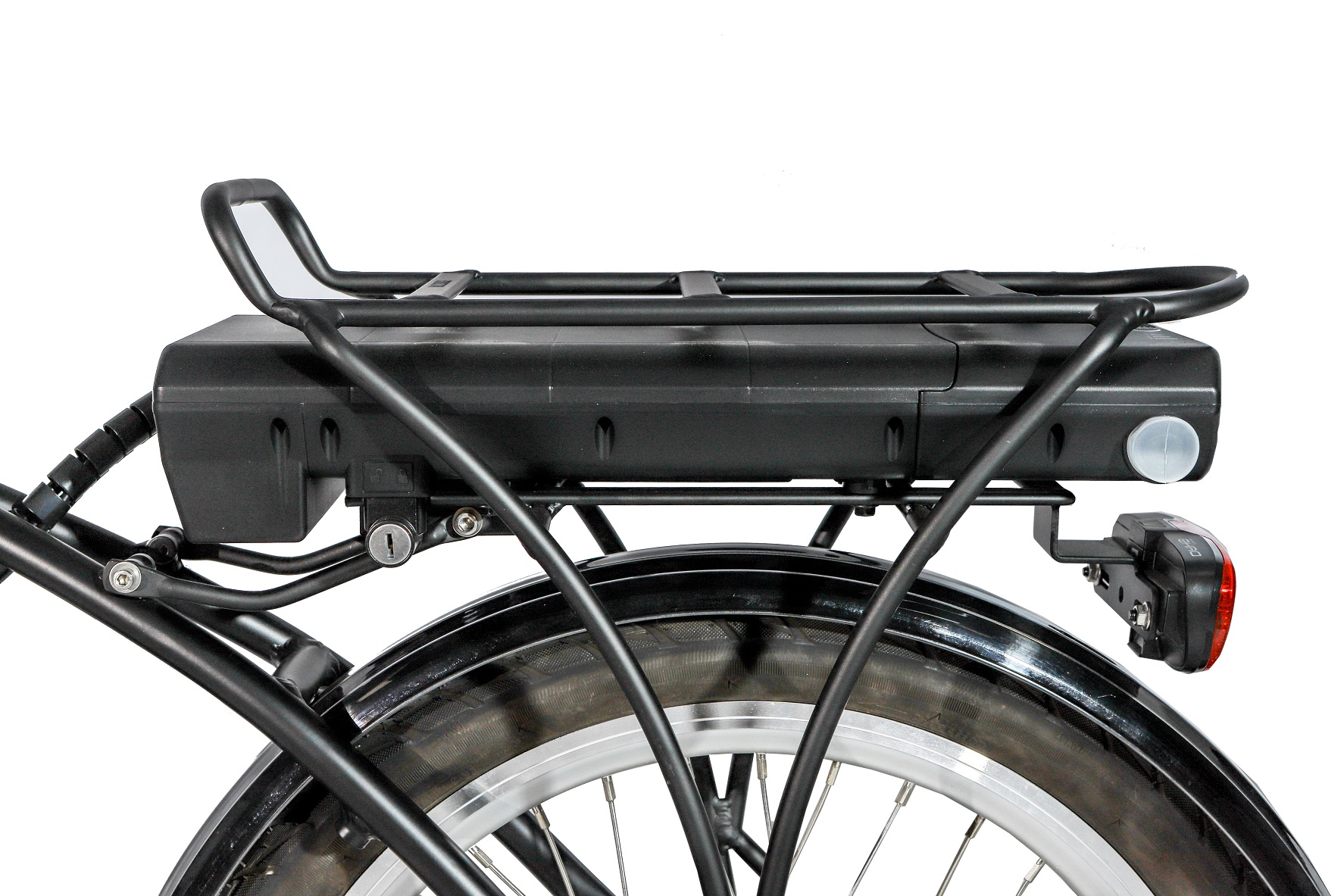

Lithium battery

36V 10.4AH lithim-ion battery with LG cells.The whole battery is easy to disassemble, and the battery can be removed and charged at any position

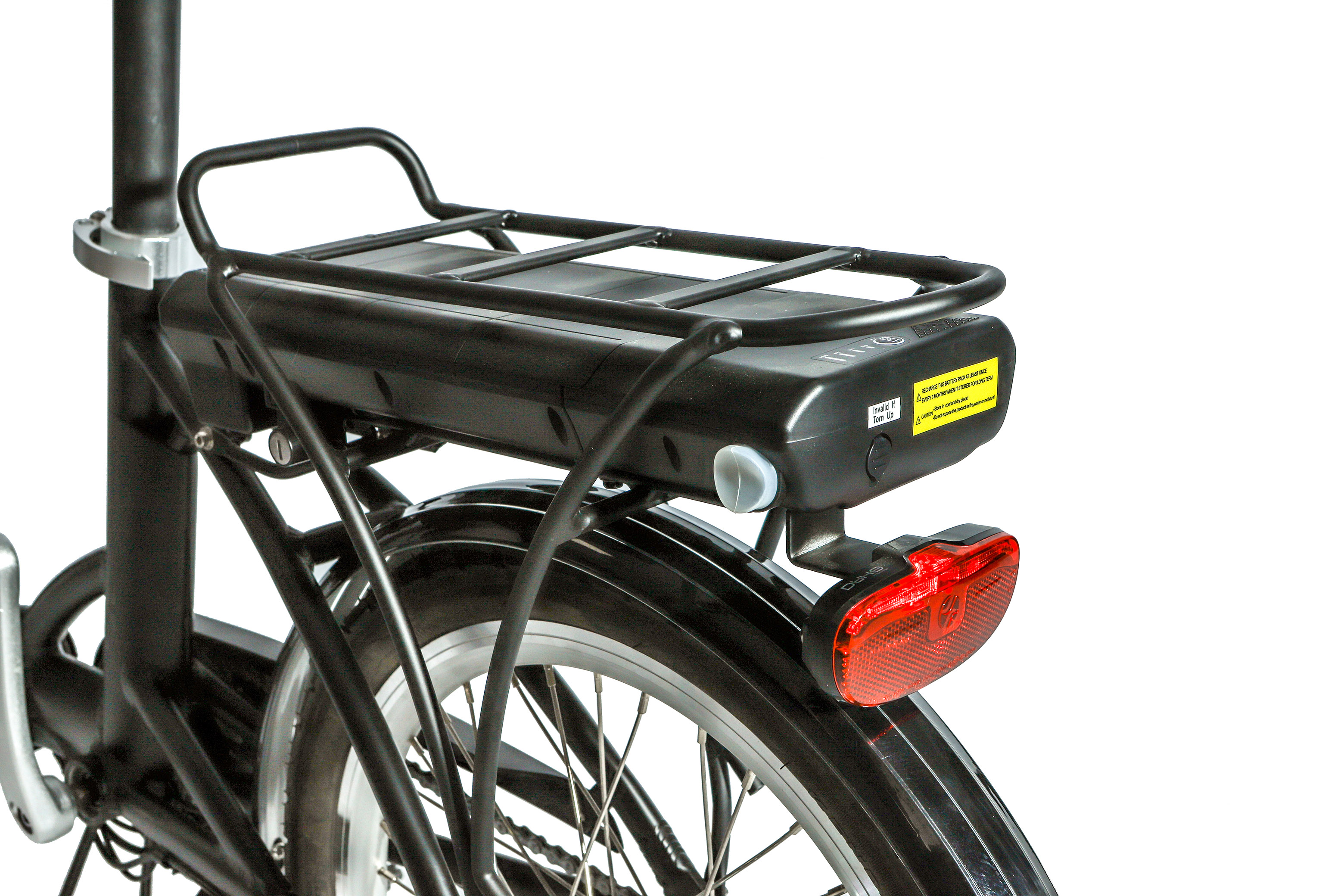

Rear Light

High-quality rear taillights ensure your safety when driving reasonably

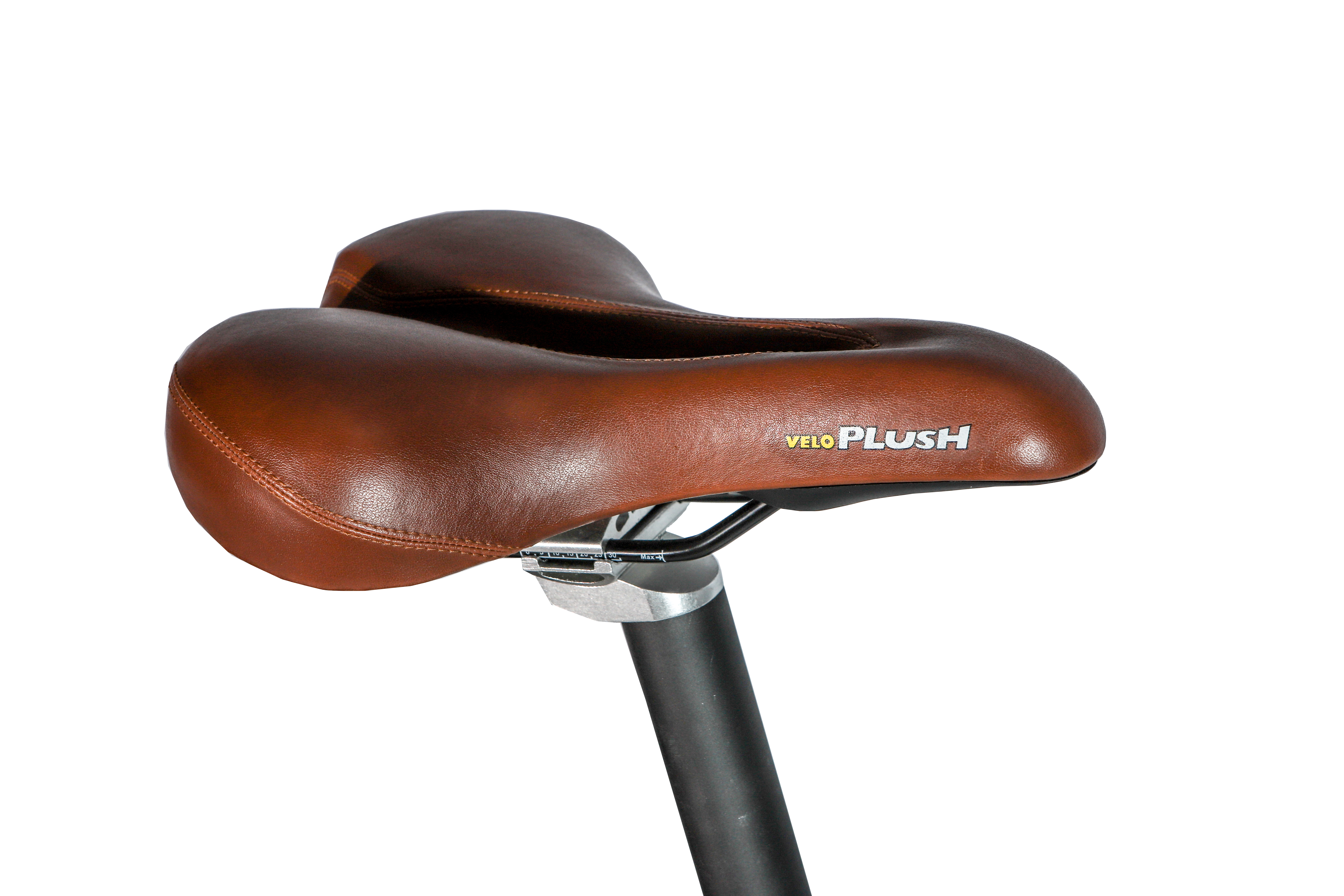

VELO Saddle

High quality VELO saddle, have a comfortable journey

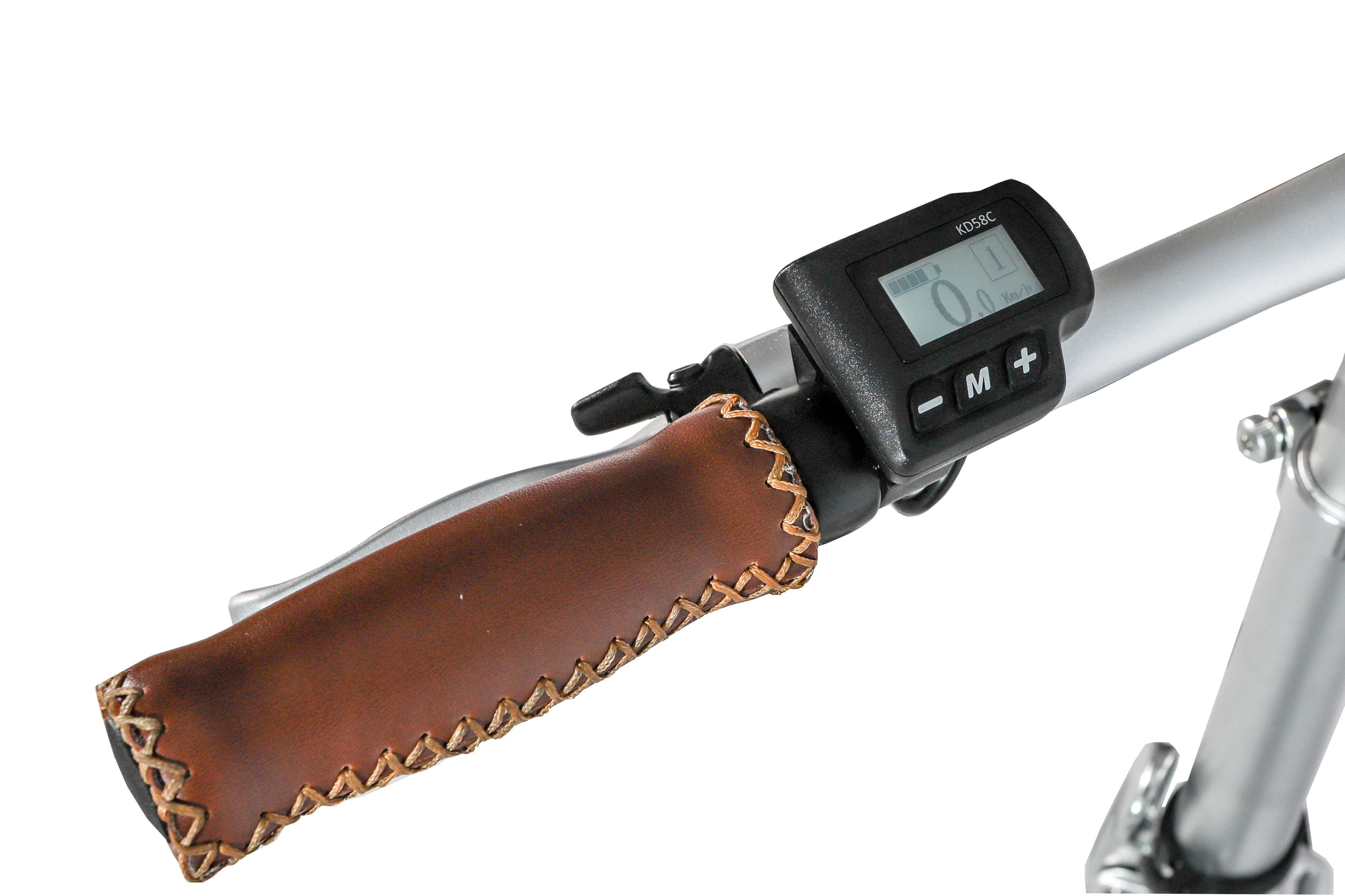

Intelligent LCD display

It can show you the battery and speed information directly. Otherwise, you can change the lever by the up and down button.many other parameters can also be setting up

Green Pedel Quality Management

Product quality is the core of long-term cooperation

Improve the quality control management, we are always on the Road

Incoming Inspection

According to our inspection standards for incoming materials, our inspectors need to complete incoming materials inspection within 24 hours after the materials arrived

Inspection of Semifinished Product

For each part, we need to get the factory inspection report of the corresponding factory, and for the whole electric system, we need to carry out 100% inspection

System Loading Test

We have a cycling tester specially equipped. For new samples, we will arrange loading and cycling tests outdoors to ensure that the system matches and performance are completely correct

Finished Product Inspection

Before packing, QA will carry out sampling test of 5% of finished products according to finished product inspection standard, and keep inspection records

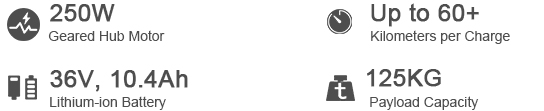

Electronic Details
Motor Type: Greenpedel Front wheel Brushless , hall effect , high speed Motor
Motor Power: 36V 250W
Battery : 36V 10.4AH , lithium battery SAMSUNG
Estimated Charging time : 4-6H
Estimated Min And Max Range :
40-80 KM (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)
Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Brake lever : TEKTRO brake lever
Display : KD58C LCD Display ; power on/off , battery indicator , 0-5 level assist
Front Light : HL2800 Spanninga Kendo LED Light
Speed : EU:25km/h, USA:32km/h
Power Mode : Sine-wave Speed sensor
Rear Light : Spanninga LED light

Bicycle Details
Frame :14" Aluminium Alloy Frame
Grip :VELO
Fork : Zoom Alloy Suspension Fork
Brake : Front TEKTRO V Brake
Shifter : SHIMANO NEXUS Internal 7 Speed
Rear Derailleur : SHIMANO NEXUS C3000 7 Spd
Brake : Rear SHIMANO Roller Brake
Tire : kenda 20*1.95
Pedal : VP
Saddle : VELO
Crank : PROWEEL
Fenders : Front And Rear
Max Load : 125KG
Carton Size : 890mm*440mm*710mm


Or maybe you'd prefer a different ebike?

GP-201607D

Smart folding electric bike,with 36v 250w front wheel brushless high speed motor, which is easily to be carried.

GP-261204A

Cheap electric city bike, 36v 250w rear wheel motor and 36v 9Ah lithium battery.Very fashion and popular in Europe.

GP-261503B

36v 350w rear wheel motor electric city bike,18" aluminium alloy frame and Kenda 26*2.3 tire. Very suitable for man.

GP-201201F

36v 500w popular fat tire electric folding bike,powerful motor with the mini ebike frame give you the feeling like never before.

GP-261201F

26 inch electric fat tire bicycle,sinewave speed sensor and the hall effect, high speed motor.Very popular in America.
This folding e-bike is an excellent choice for those who want a convenient and eco-friendly mode of transportation. It features a Greenpedel front wheel brushless motor that is capable of generating 36V and 250W of power. This motor is coupled with a 36V 10.4AH lithium battery from Samsung that can be fully charged in just 4-6 hours. With a range of 40-80 km, depending on riding style, terrain, rider weight, and peddle assist level, you can travel comfortably and confidently on this bike.

The bike offers three drive modes: cadence sensing pedal assist, trigger throttle, and walk mode. The KD58C LCD display shows the power on/off, battery indicator, and 0-5 level assist, and the HL2800 Spanninga Kendo LED light illuminates your way in low-light conditions. The bike is capable of reaching speeds of 25 km/h in the EU and 32 km/h in the USA, and the sine-wave speed sensor provides a smooth and seamless power delivery.

The 14" aluminum alloy frame is sturdy and durable, and the Zoom alloy suspension fork ensures a comfortable ride on uneven terrain. The bike features TEKTRO brake levers, a front TEKTRO V brake, and a rear SHIMANO roller brake for reliable and efficient braking. The SHIMANO NEXUS internal 7-speed shifter and rear derailleur offer smooth and efficient shifting, and the Kenda 20*1.95 tires provide excellent grip on different surfaces.
